Project X

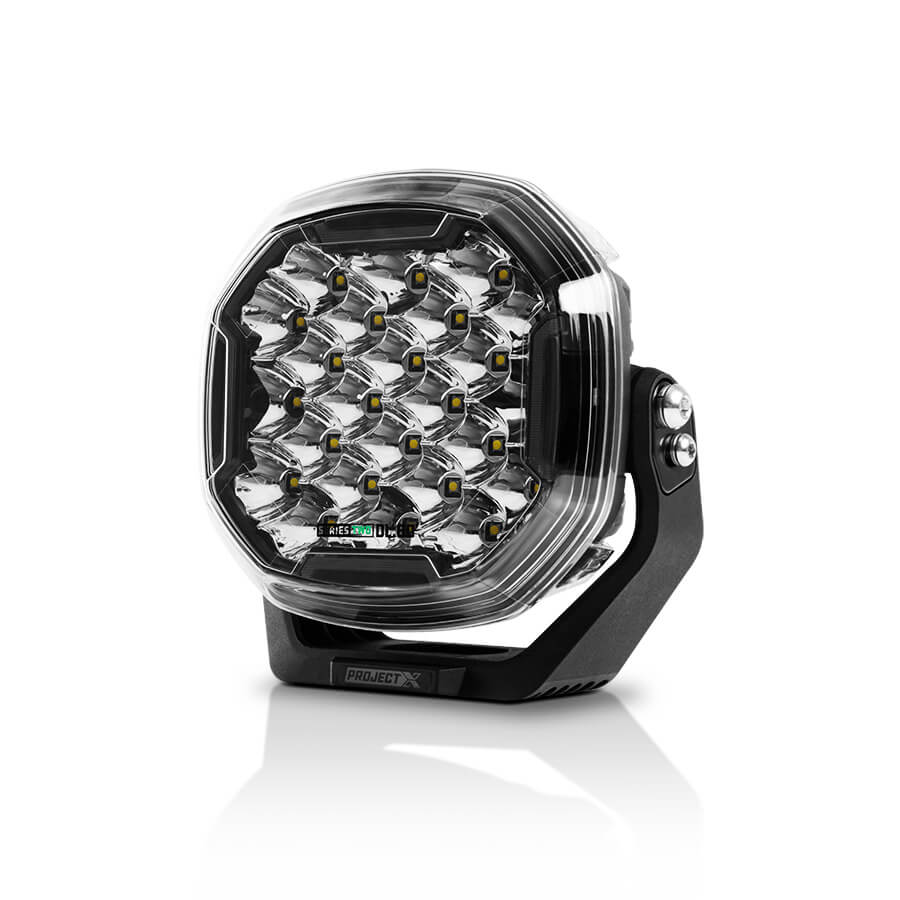

6-INCH COMBO BEAM DRIVING LIGHT WITH RGB

AL538829-1

All the sizing. All the colors. We designed the Series Two Driving Light for those who seek to stand out among the herd. Utilizing 5w Cree LEDs and... Read More ►
SPECS:
  • Input Voltage : 9-33V
  • LED Type : Cree® LEDs
  • Operating Temp : -40°F to 149°F
  • Color Temp : 5700°K
  • Color Rendering Index : 70
  • Raw Lumens : 6,000
Read More ►
Industry Leading Warranty<sup>†</sup> Industry Leading Warranty
Trusted by Professionals<sup>†</sup> Trusted by Professionals
Free Shipping<sup>†</sup> Free Shipping

ABOUT

All the sizing. All the colors. We designed the Series Two Driving Light for those who seek to stand out among the herd. Utilizing 5w Cree LEDs and our all-new RGB position lights, the Series Two Driving Lights deliver performance and personality in any size.

SPECS

POWER

  • Input voltage: 9-33V
  • LED Power : 20W
  • Current Draw @ 13.5V : 4.74A
  • Operating Temp : -40°F to 149°F
  • Heat Management : Active, Thermal Management, System (ATMS)
  • Protection : Reverse Polarity Protection and Under Voltage Protection
  • EMC : ECE R10

LEDs

  • LED Type: 5W Cree® LEDs
  • No. LEDs : 24

LUMENS

  • Color Temp : 5700°K
  • Color Rendering Index : 70
  • Raw Lumens : 6,000
  • Effective Lumens : 4,600
  • Beam Length (2 lamps) : 1 lux @ 1132 Feet

CONSTRUCTION

  • Housing: Pressure die-cast aluminum
  • Lens : Hard coated Polycarbonate - Solid Black
  • Hardware : Stainless Steel 304 and 316
  • IP Rating : IP68 & IP69K
  • Weight : 3 lbs
