Project X

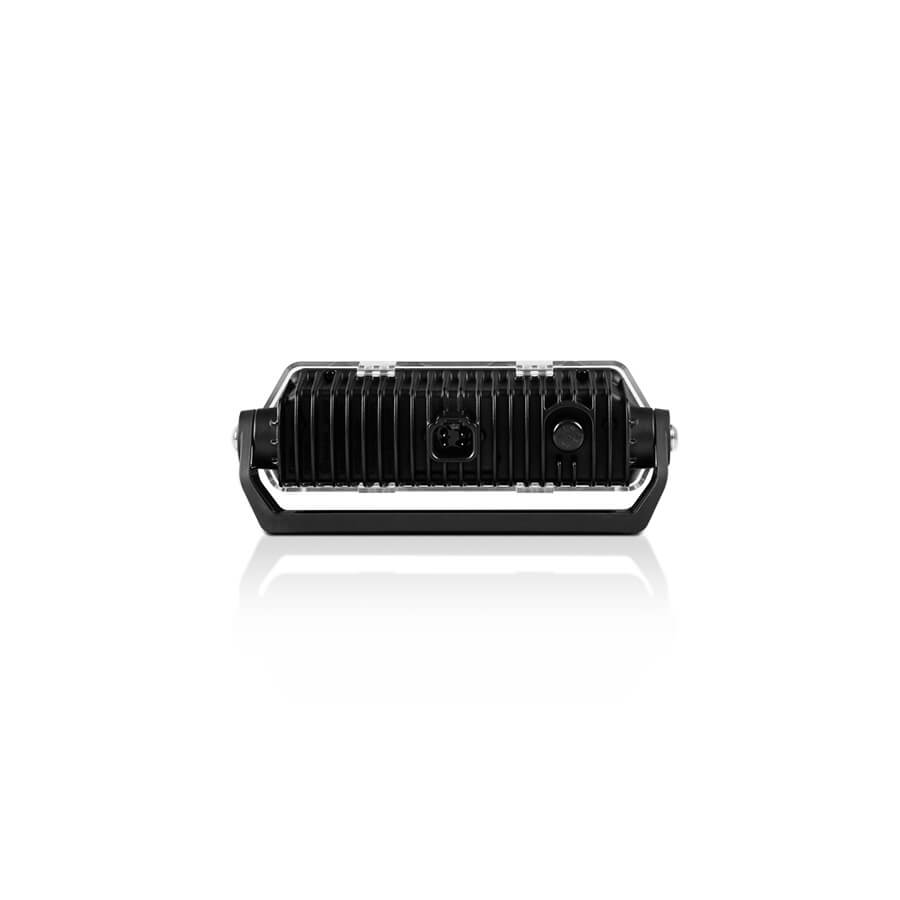

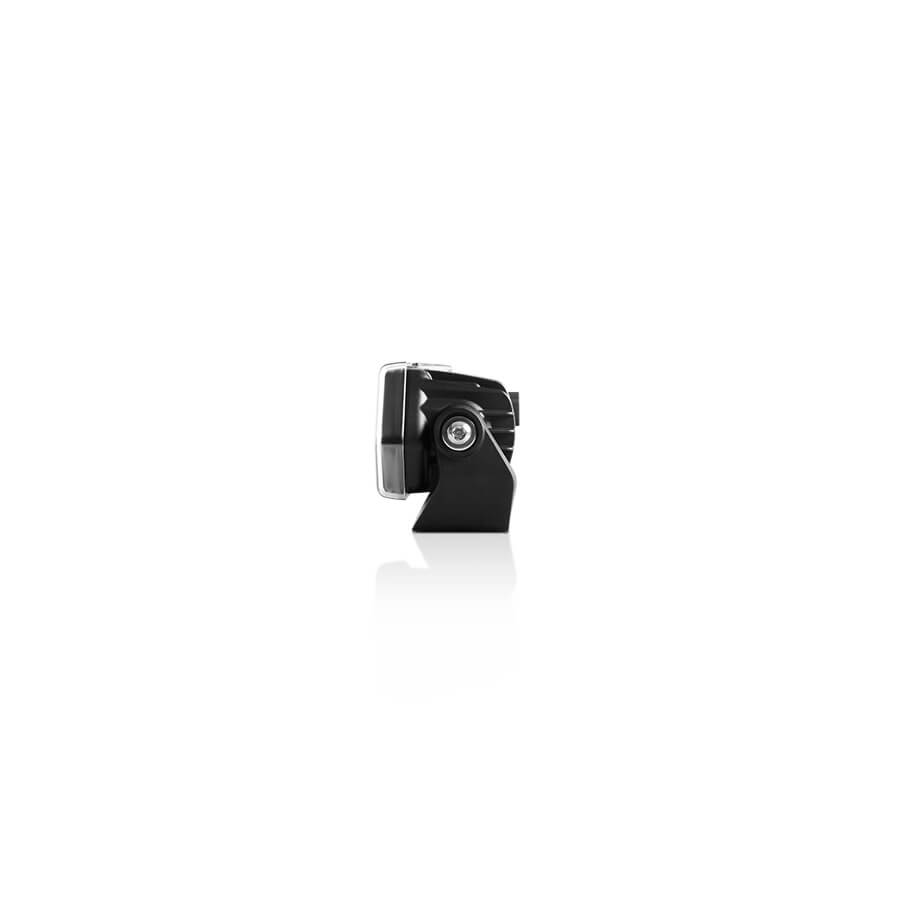

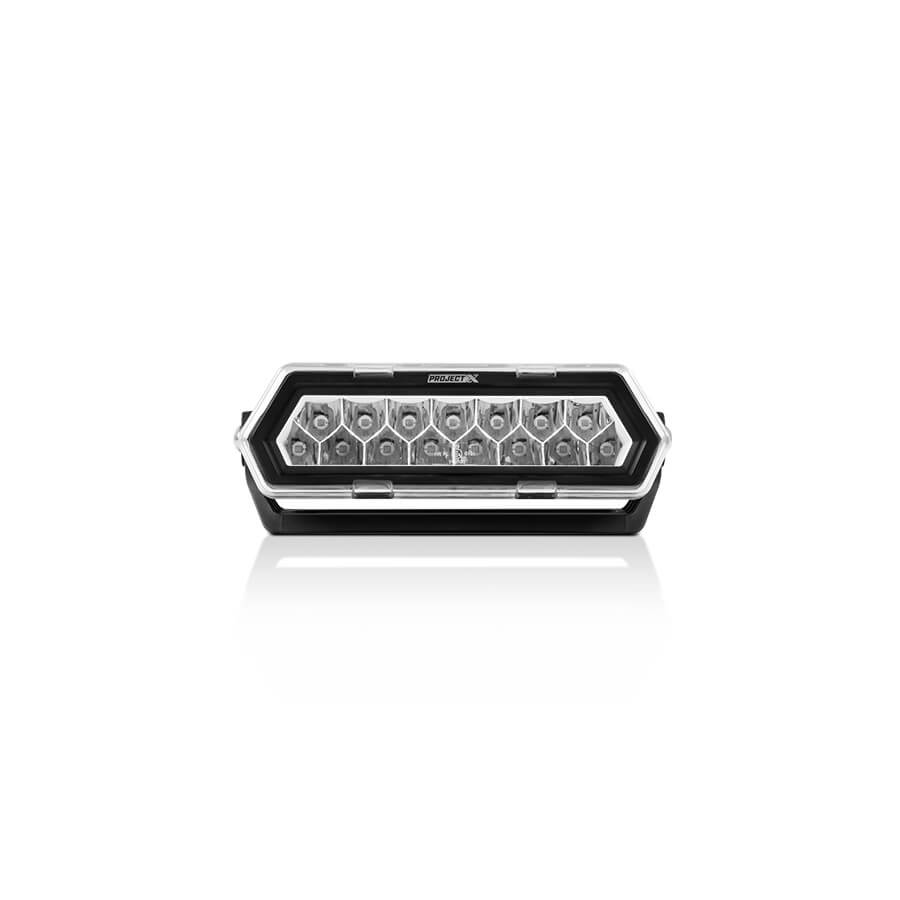

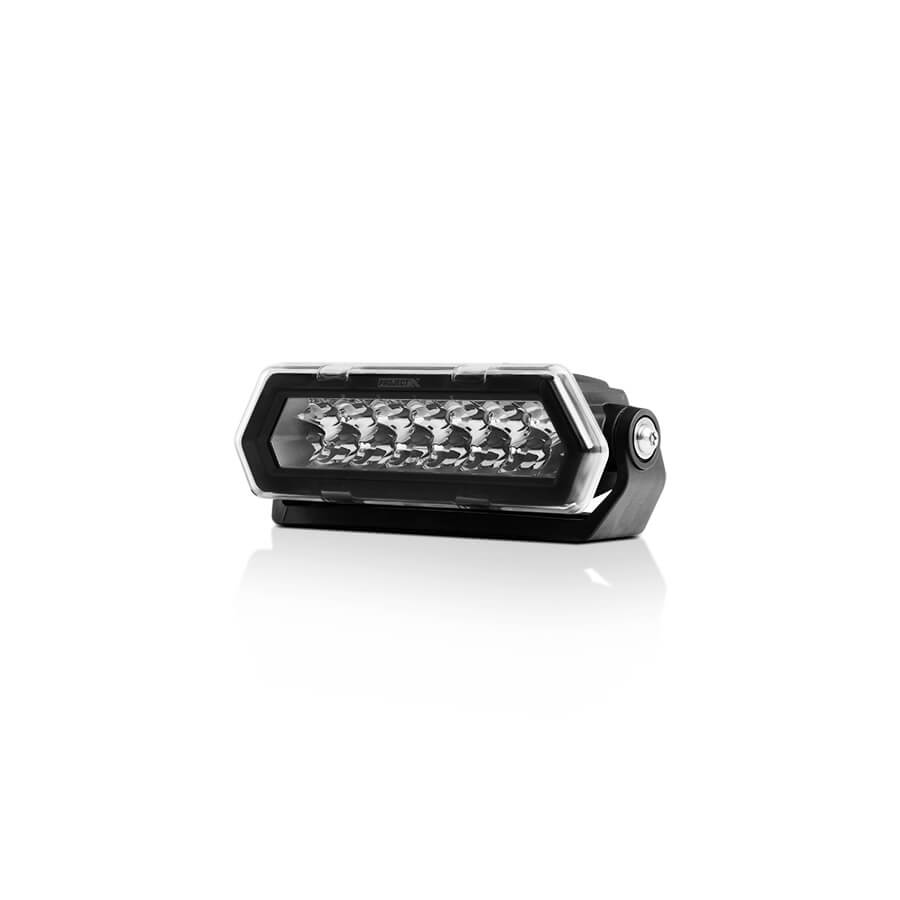

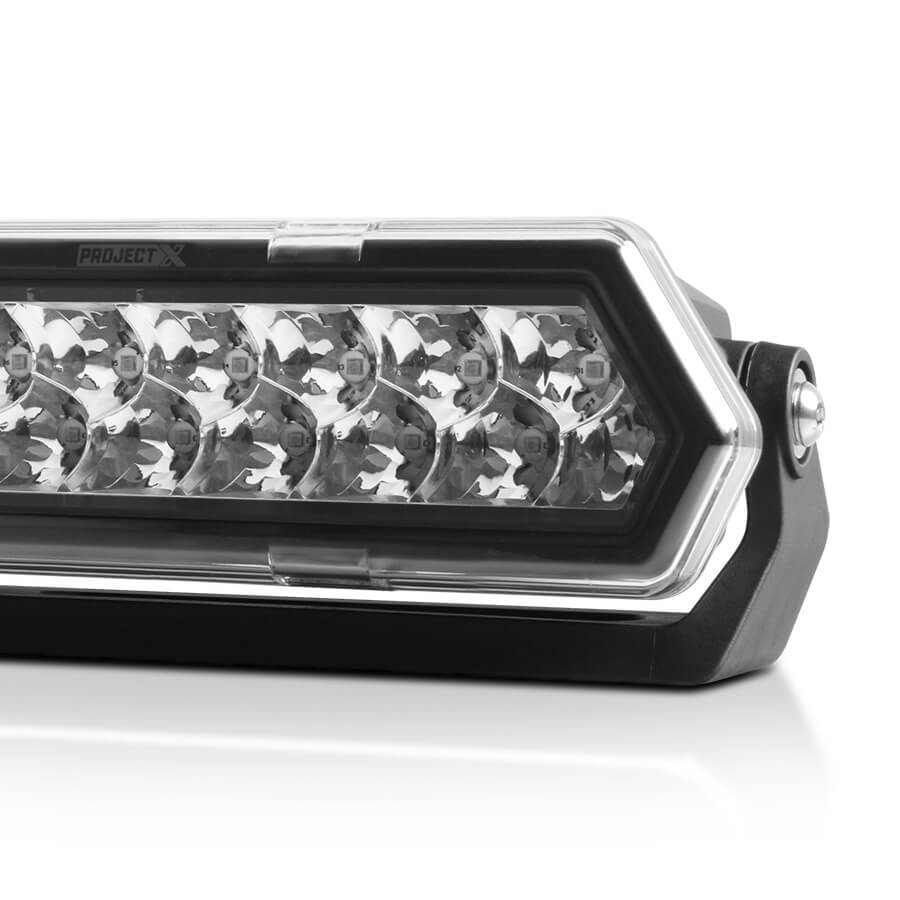

8-inch Double Row High Power Light Bar - Flood

AL538840-1

The Series X Light Bar is the latest in LED technology from PROJECT X. These bars feature unparalleled Osram LED technology to provide the most amo... Read More ►
SPECS:
  • Input Voltage : 10-33V DC
  • LED Type : Osram®
  • Operating Temp : -40°F to 149°F
  • Color Temp : 5700°K
  • Color Rendering Index : 70
  • Raw Lumens : 10,200
Read More ►
Industry Leading Warranty<sup>†</sup> Industry Leading Warranty
Trusted by Professionals<sup>†</sup> Trusted by Professionals
Free Shipping<sup>†</sup> Free Shipping

ABOUT

The Series X Light Bar is the latest in LED technology from PROJECT X. These bars feature unparalleled Osram LED technology to provide the most amount of light possible. Featuring an Active Thermal Management System (ATMS), the LB.08 delivers over 120 watts of pure white light power, focused into a spot or flood beam. This may just be the last light bar you'll ever need.

SPECS

POWER

  • Input voltage : 10-33V DC
  • LED Power : 122W
  • Current Draw @ 12V DC : 9A
  • Operating Temp : -40°F to 149°F
  • Heat Management : Active, Thermal Management, System (ATMS)
  • Protection : Reverse Polarity Protection
  • EMC : ECE R10

LEDs

  • LED Type : Osram® LEDs
  • No. LEDs : 15

LUMENS

  • Color Temp : 5700°K
  • Color Rendering Index : 70
  • Raw Lumens : 10,200
  • Effective Lumens : 6,610
  • Beam Length (1 bar) : 1 lux @ 1575 Feet
  • Beam Width (1 bar) : 1 lux @ 131 Feet

CONSTRUCTION

  • Housing : Pressure die-cast aluminum
  • Lens : Hard coated Polycarbonate
  • Hardware : Stainless Steel
  • IP Rating : IP68 & IP69K
  • Weight : 4 lbs
