Accessory control redefined – The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience.

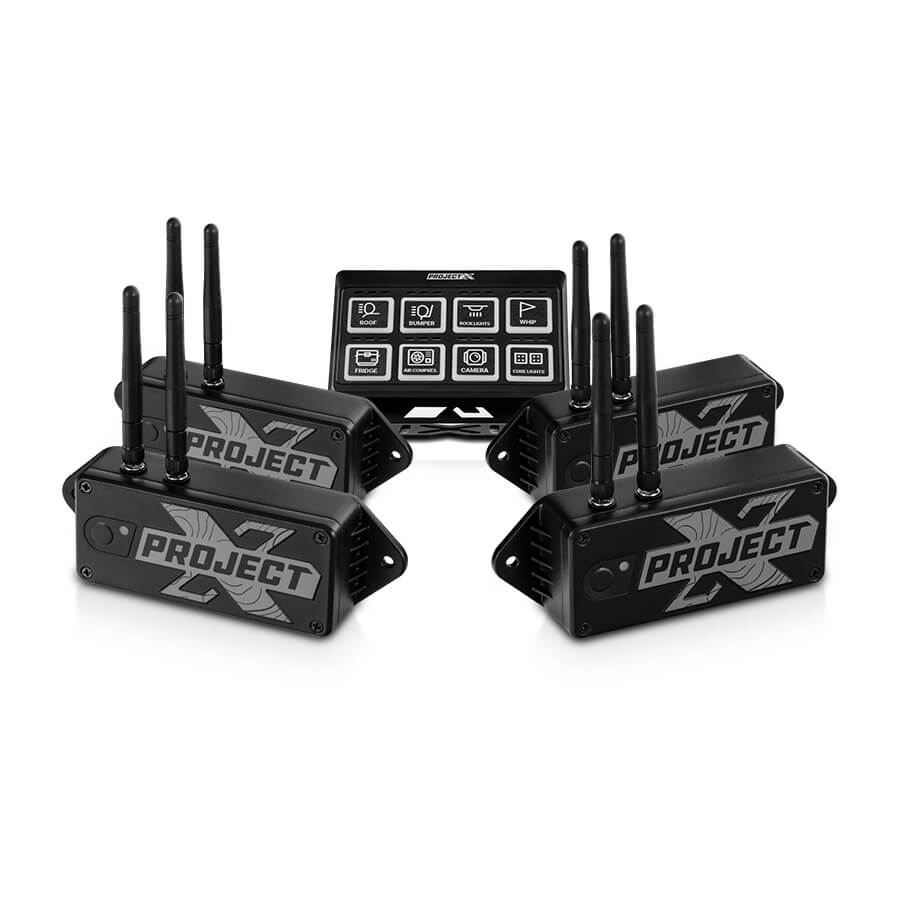

The fully expandable system includes 4 two-circuit control modules that wirelessly communicate to a control keypad which you can program via the PROJECT X app. Control a single module for an easy accessory install, or create a large ecosystem across your vehicles, trailers and equipment. Create presets you can incorporate across all of your accessories and set up groups and timers. With the PROJECT X Ghost Box we make it easy to Connect with the Wild.

• Why was Ghost Box created?
  Ghost Box was created with a vision to challenge the norm within the automotive industry. Recognizing a gap in the market, particularly in comparison to the advancements seen in smart home ecosystems and smart switches, Project X embarked on the challenge of merging Smart Ecosystems technology with 12V electrical system. The goal is to bring innovation to the slow-moving automotive sector by introducing a sophisticated and intelligent solution that transforms the conventional approach to switch boxes. Ghost Box represents our commitment to pushing boundaries and embracing the future of automotive technology.


• Why should I use Ghost Box as my 12V Switch Box?
  Simply, its wiring made easy.
  Choosing Ghost Box as your 12V Switch Box offers a straightforward "in-line" solution to simplify your wiring needs. Our system is designed for ease of use – a plug-and-play solution that eliminates the complexities of designing custom relay/switch setups. With Ghost Box, the hassle of drilling through your firewall and navigating extensive wire installations throughout your vehicle is a thing of the past. The process is simple: Place Ghost Box anywhere on the vehicle (ideally close to the accessories you'll be powering), connect power from the battery to the Ghost Box, plug in your accessories, pair the Ghost Box with your phone or tablet, customize settings through the app, and you're done. Ghost Box is dedicated to streamlining your 12V experience, making it more user-friendly and efficient.



• What Features does the Ghost Box System have?
  • Each Ghost Box Control Module has two circuits: Control both circuits individually or pair both circuits for simultaneous control.
  • Each Circuit has 4 functions: ON, Strobe, Dim, Off. Each button press cycles through the functions in the listed order.
  • Don't need a function? Turn off via the app, enable only the function(s) you need.
  • Adjustable Strobe and Dim functions: Adjust the Strobe speed and brightness via the app.
  • Every Ghost Box comes with adjustable Low-Voltage-Protection. It's important to note that the Low-Voltage Protection applies to the entire Ghost Box and not individual circuits.
  • Utilizing the Ghost Box's Low Voltage-protection-Settings, circuits can be setup to be triggered by Ignition.
  • Built-in Memory stores the circuit's setting when low-voltage protection is triggered, when voltages increases circuits will resume as they were.
  • Each Circuit is equipped with an adjustable self-resetting Over-Voltage Protection feature.
  • Each Ghost Box communicates via its own self-generated Wi-Fi, employing two or more Ghost Boxes creates a Wi-Fi Mesh Network. We prefer Wi-Fi for a secure and dependable connection to your accessories, given that Bluetooth is often constrained by limited range, potential interference, and a capped number of connectable devices.
  • Please note that the Ghost Box Wi-Fi network functions independently of the internet and seamlessly operates regardless of location. It moves with the vehicle and remains operational regardless of speed.
  • Add up to 12 Ghost Boxes (24 circuits) across your vehicle, trailer, or other equipment.

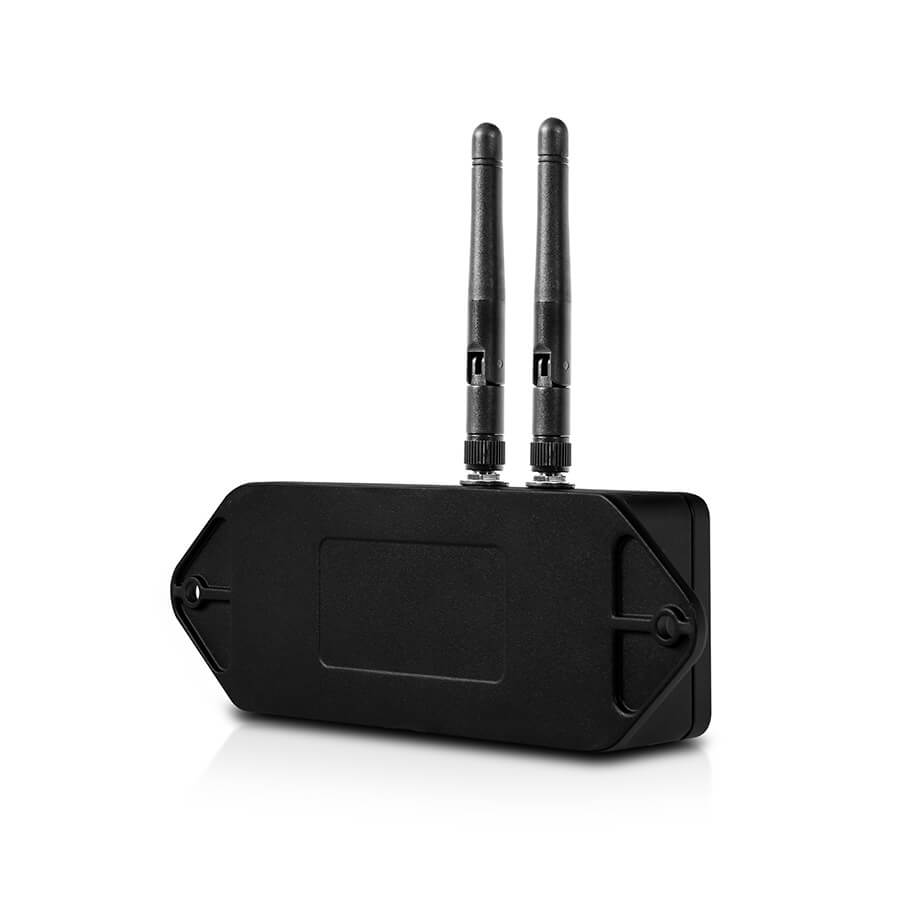

  • Each Ghost Box can be mounted via the provided screws or double sided tape.

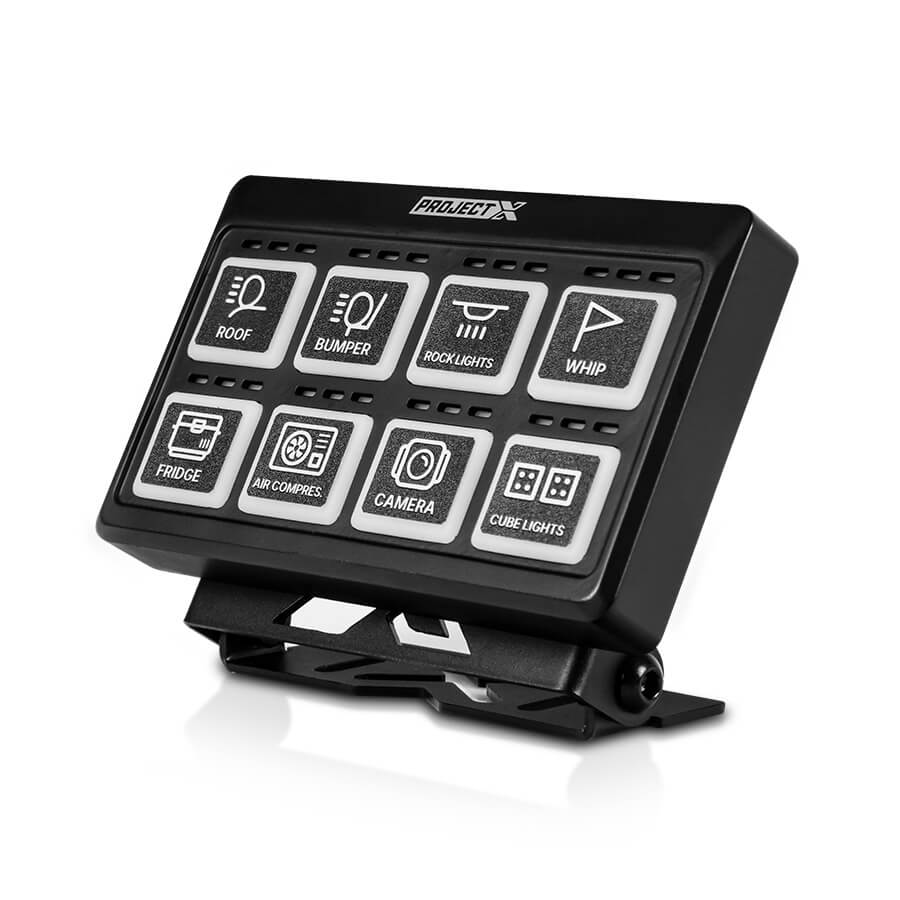

  • The included Keypad is an optional component, control the Ghost Boxes exclusively through the phone app if you desire. If a keypad is utilized, the app interface remains functional. It's essential to decide on the preferred control method during the initial setup.

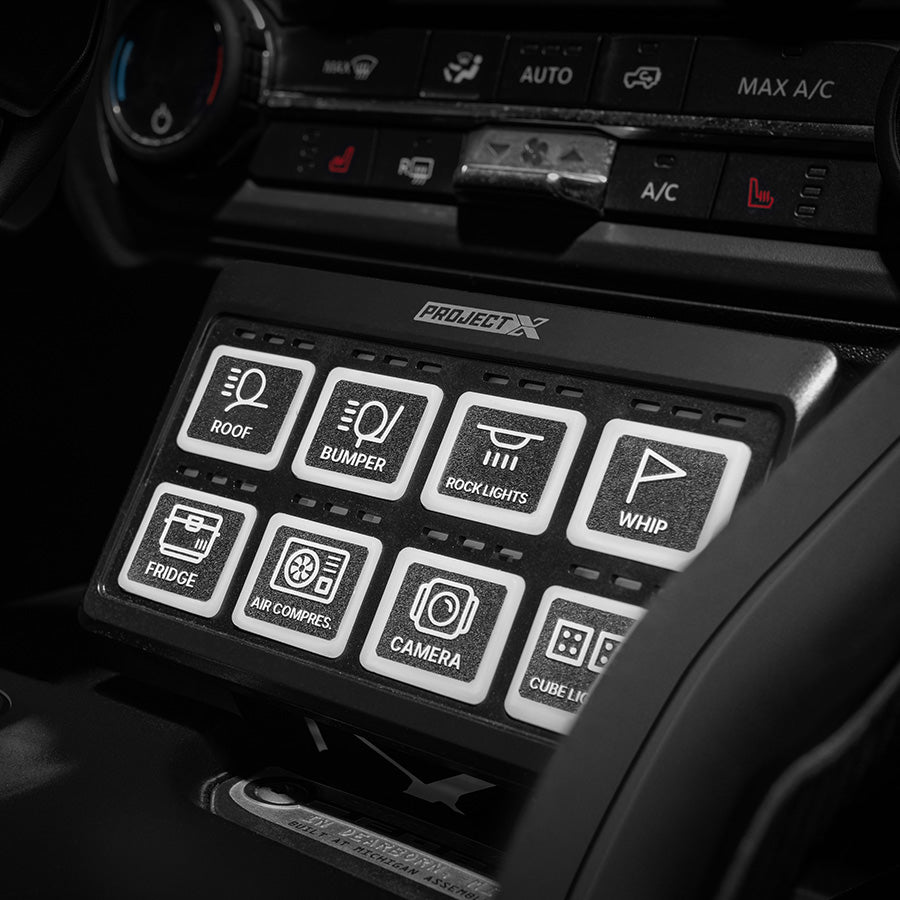

  • Installing the keypad is a breeze – just tap into the interior fuse block in the vehicle's cabin, and you're all set. No need to drill through the firewall to run a cable. The keypad will communicate with the Ghost Boxes via Wi-Fi.

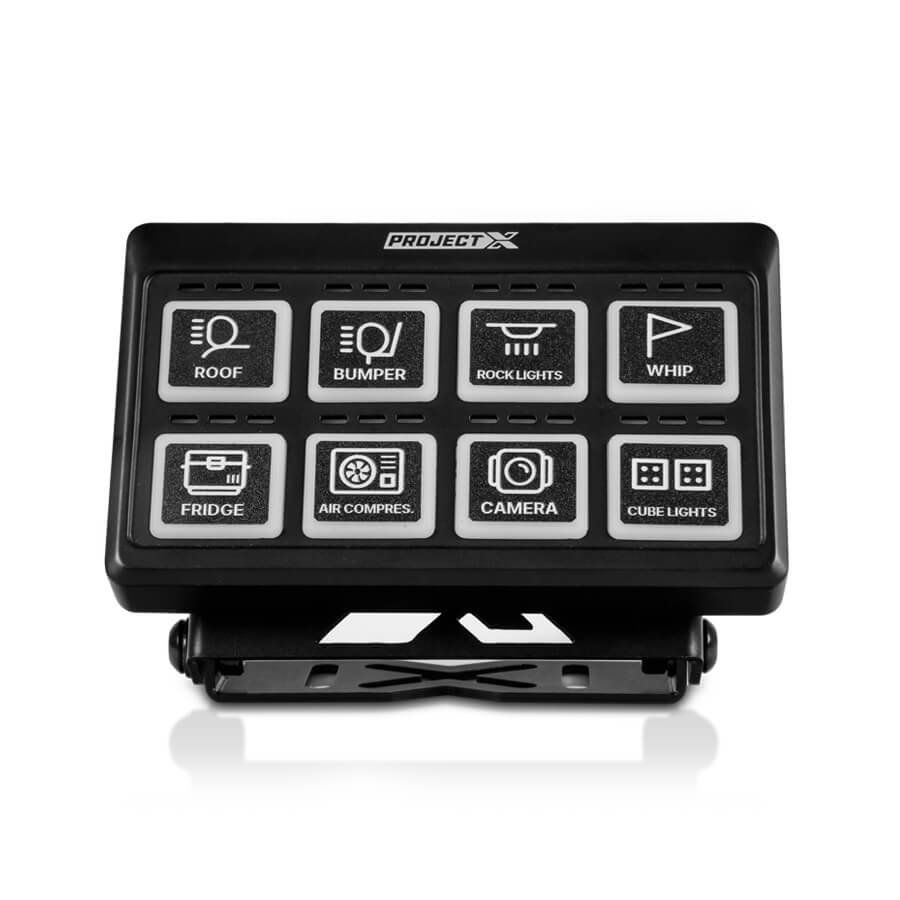

  • The buttons on the keypad each have their own RGBW color customization. Color-code your Buttons as needed.
  • We include 60 stickers for the keypad. Select the one that best suits your need.

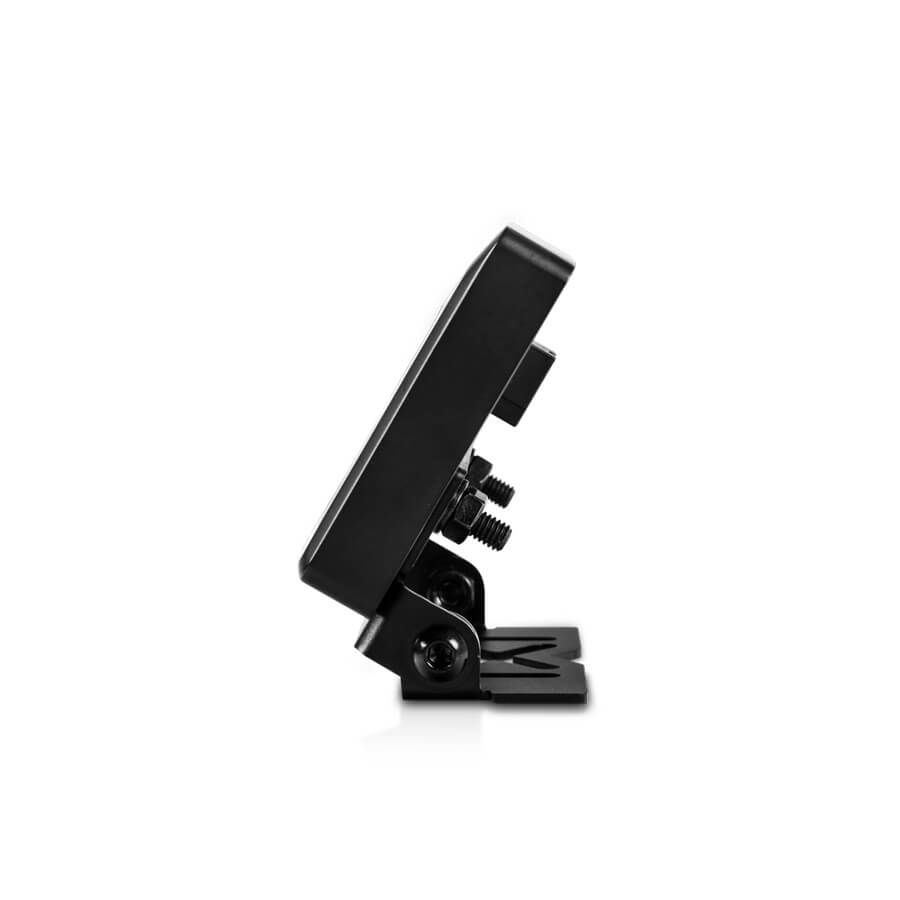

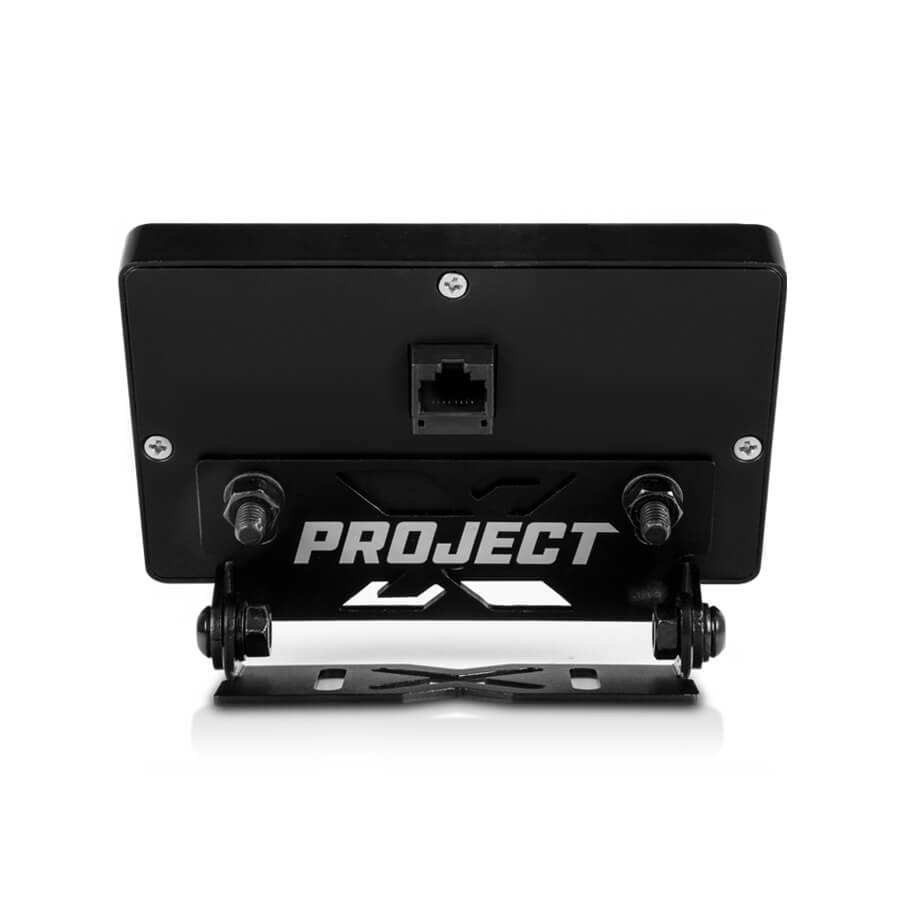

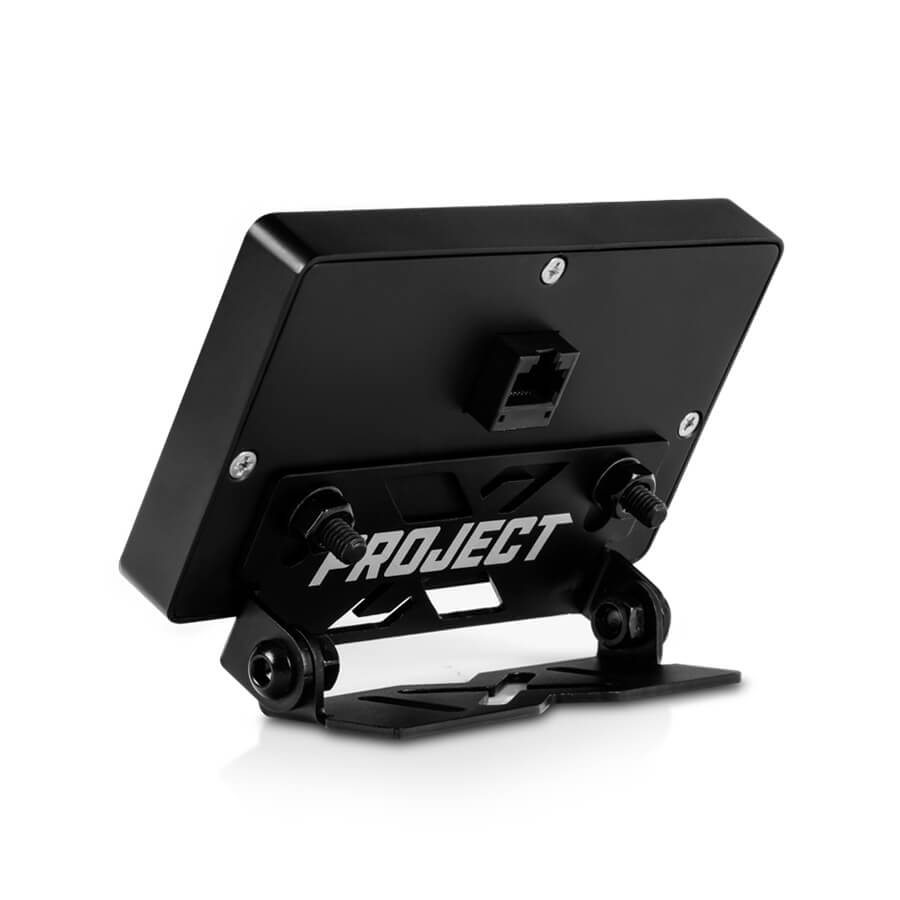

  • The Keypad can be mounted using screws or the provided double-sided tape. Moreover, the Keypad Mount is compatible with RAM Mounts.
  • The Keypad features its own independently adjustable low-voltage protection setting, distinct from the settings on the Ghost Boxes.
  • Adjustable Keypad Backlight brightness.


• Tell me more about Ghost Boxes and how they can be utilized…

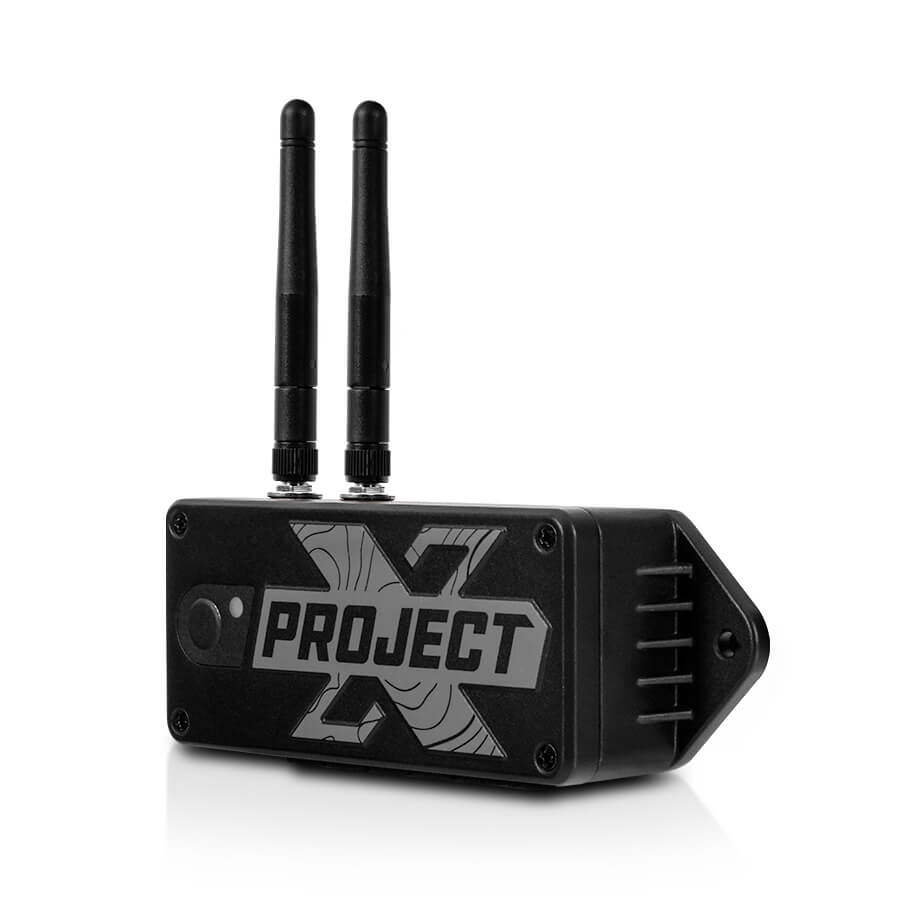

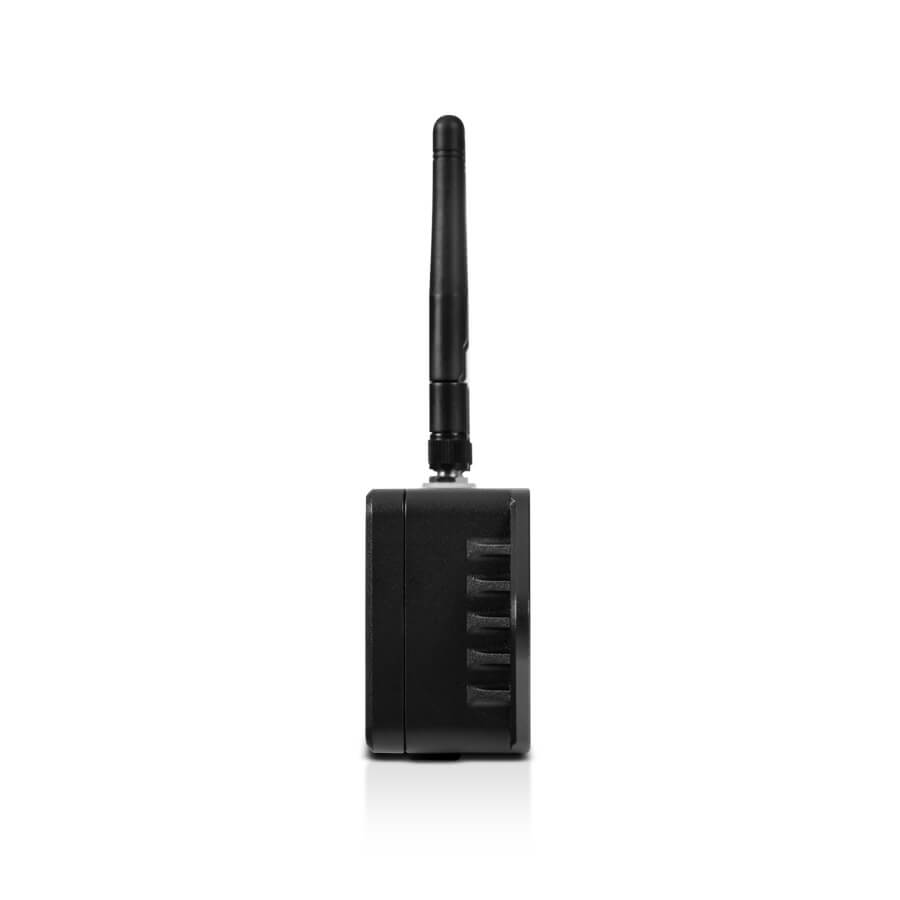

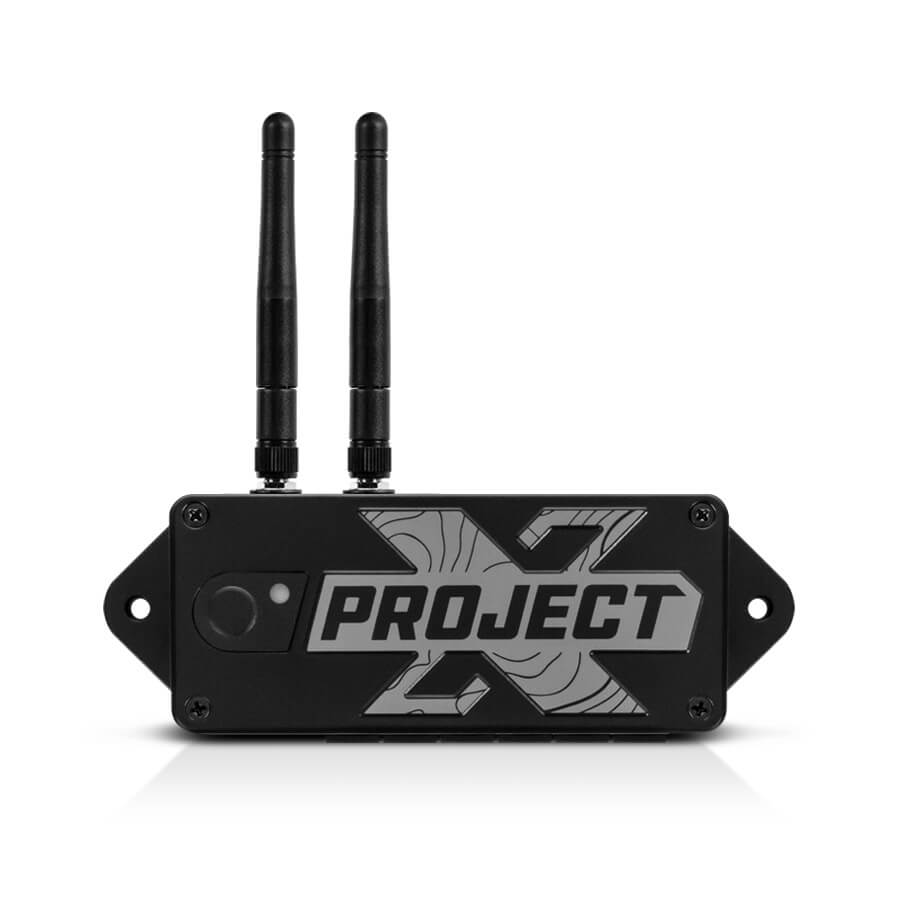

  Each Ghost Box Control Module features two circuits: Channel 1 is 20 Amps, Channel 2 is 40 Amps. You have the flexibility to use both circuit individually or pair both circuits for simultaneous control. Each circuit has Four functions—ON, Strobe, Dim then off, through the app, you can disable any of functions. The Keypad or App enables you to cycle through the functions (One/Strobe/Dim/Off) with each button press, skipping any disabled functions. Moreover, the Strobe and Dim features are customizable through the app, providing the ability to adjust the strobing speed and brightness according to your preferences.

  Ghost Box is engineered to streamline the wiring in your vehicle, reducing the clutter of wires running across it. This is achieved by strategically placing modules throughout the vehicle near your accessories, as opposed to having all wires converge at a centralized location. To set up a Ghost Box, position the module near the accessories you want to control. Connect power from the battery to the Ghost Box, ground the Ghost Box by attaching the negative terminal to the battery or the frame, and then plug your accessories into the designated circuits. To further minimize the number of wires originating from the battery, use a large gauge wire from the battery and branch off as needed, employing Distribution Blocks for optimal organization.

  Efficient circuit management is achieved by considering Amperage and Control as guiding principles. Each Ghost Box circuit has a defined amperage limitation, and it's crucial not to exceed this threshold. For independent control of circuits such as roof and bumper lights, utilize separate circuits. Conversely, if you prefer simultaneous control of (circuits such as) your roof and bumper lights, a single circuit suffices. In cases where the combined amperage of items surpasses the rating of a single circuit, employ both circuits of a single Ghost Box. When connecting that Ghost Box through the app, be sure to select the option that enables the control of both circuits simultaneously under a single button.



• What / How can I control my circuits?
  Control up to 24 Ghost Box Modules, each Ghost Box Control Module has two circuits: Use both circuits individually or pair both circuits for simultaneous control. Each circuit can control a single component or several by considering Amperage and Control as guiding principles. Each Ghost Box Circuit has a defined amperage limitation, it's crucial not to exceed this threshold.

  Example: 6 Round Roof Lights and bumper lights:
  For independent control of each lighting section (Roof and bumper lights) utilize separate circuits. Connect all 6 Roof lights to Channel 1 and bumper lights to Channel 2 allowing each lighting section to have its own button.

  Conversely, if you prefer simultaneous control of both the roof and bumper lights, a single circuit could suffice so long as the amperage is not exceed. Both light sections will be controlled by 1 Button and will always be on or off together. In cases where you’d like simultaneous control but the combined amperage of the items surpasses the rating of a single circuit, employ both circuits as mentioned in the independent control section above. When pairing that Ghost Box through the app, select the option that enables the control of both circuits simultaneously under a single button.



• My Keypad only has 8 buttons, how do I control the rest of my Circuits?
  The top 8 circuits displayed on the app correspond to your keypad, the keypad can only control 8 circuits, the remaining circuits are managed through the app. To incorporate additional buttons into the app interface, follow these steps: click the three lines located on the top right corner to access the Keypad Settings, then select "Number of Buttons" and choose your desired option. The top 8 buttons on the app, distinguished by a grayed-out background, represent your keypad circuits, while buttons on the app with a green background are exclusively controlled via the app.



• Do I need a keypad to control my Ghost Boxes?
  No. The included Keypad is an optional component, you can control the Ghost Boxes exclusively through the phone app if you prefer. If the keypad is utilized, the app interface remains functional. It's essential to decide on the preferred control method during the initial setup.



• How Does the Wireless Ecosystem work?
  This varies depending on whether a keypad is utilized. If a keypad is employed, it serves as the central control hub, facilitating communication between Ghost Boxes and your phone. Communication between the keypad and Ghost Boxes occurs via Wi-Fi, while communication between the keypad and your phone is established through Bluetooth. In the absence of a keypad, your phone assumes the role of the control hub.



• How do I pair my Ghost Boxes to my Keypad or Phone?
  To get started, download and install the PROJECT X App from the App Store or Google Play. Once installed, create your account, and set up a Vehicle profile. Then, simply click on "Add Device."

  If you plan to use a keypad, make sure it is powered on and within 30 feet of your phone as it scans for the keypad. Once detected, a new page will appear, displaying tiles that mirror the keypad. In the app, choose the position where you want to add a circuit. The app will scan for Ghost Boxes; select the desired Ghost Box (a lock icon indicates it has already been assigned). Then, decide whether to control each circuit individually or pair both for simultaneous operation. Repeat adding circuits till complete. You're all set! Long-press on a paired circuit to adjust its settings: keypad color, enable/disable functions, and fine-tune other settings. To adjust Keypad settings click the three lines on the top-right of the page.

  If you opt not to use a keypad, follow the same steps as above, except you’ll choose “Ghost Box System – App Control only”.

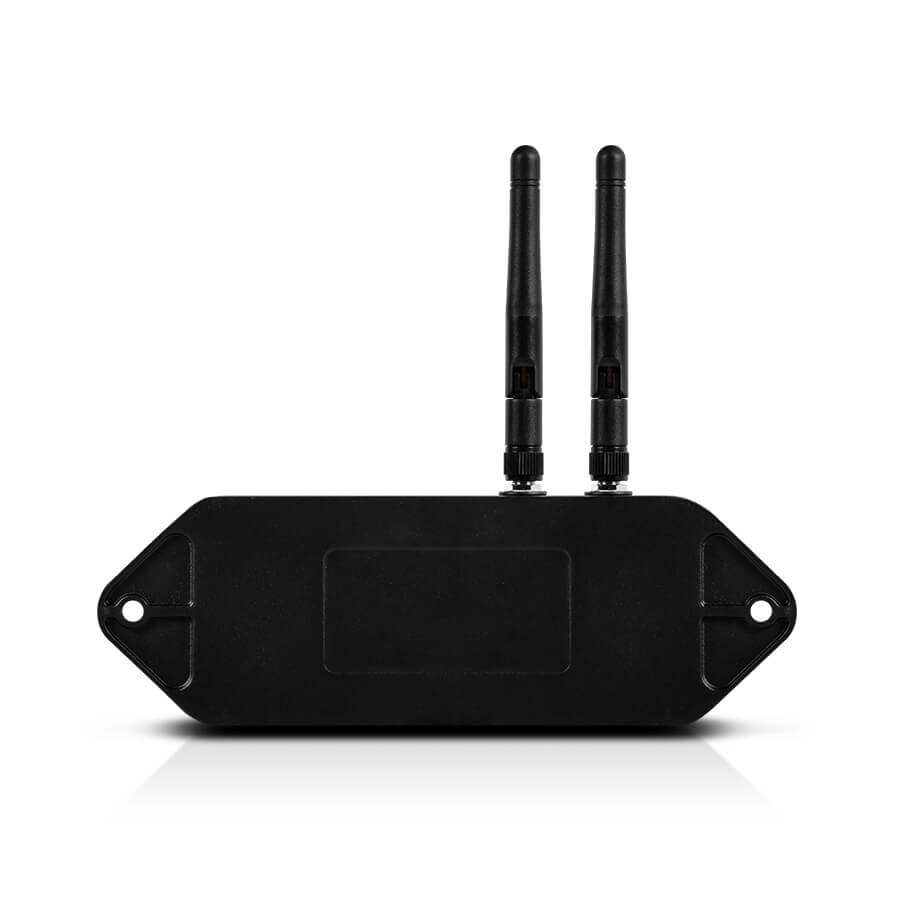

• How can I mount my Ghost Box?
  Each Ghost Box can be mounted using the provided via screws or double sided tape.



• How do I change the setting for each circuit/Ghost Box?
  With Ghost Boxes already paired, open the app: click and hold the circuit you’d like to edit, after a few seconds pen icons will appear over the buttons, click the pen icon for the circuit you’d like to adjust and select the setting you’d like to edit. After your edit ensure you save, click the “X” on the top left of the screen to exit the editing menu.
  The “x” near the circuits delete the circuits from your App and Keypad.



• What is Low-Voltage Protection and how does it work?
  Low-Voltage Protection is a feature designed offered on both the keypad and Ghost Box's from depleting the battery beyond the specified threshold. Each component has its own adjustable setting which can be adjusted through the app. It's important to note that this protection is specific to each Ghost Box and not to the circuits. When the voltage drops below its individual Low-Voltage Protection level, the Ghost Box will go to sleep, the other Ghost Boxes will remain on till and draw power until its Low-voltage setting is reached. This feature can serve as a trigger, allowing circuits within that Ghost Box to operate only when the vehicle is on.



• How many Control Modules can I have in my Ecosystem?
  Our Ecosystem can manage 12 Modules (24 Circuits)



• Can a single Ghost Box Control Module be used by itself or do I need a "Kit"?
  No kit needed, even the keypad is optional. Use our app to control circuits and grow you system as needed one Ghost Box at a time if needed.



• Can I power a Winch with a Ghost Box?
  Not directly. The high amperage requirement from winches exceeds the Ghost Boxes amperage limitation. Instead we can use a high amperage relay with the Ghost Box circuit triggering the relay to power the winch.
