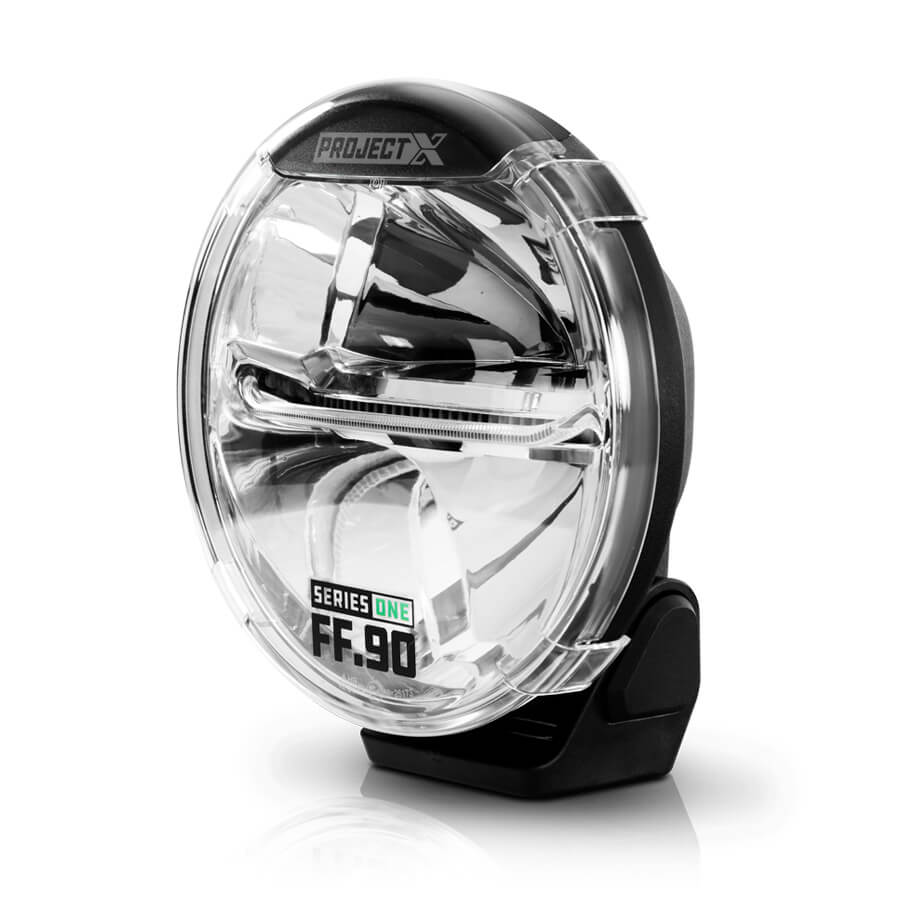

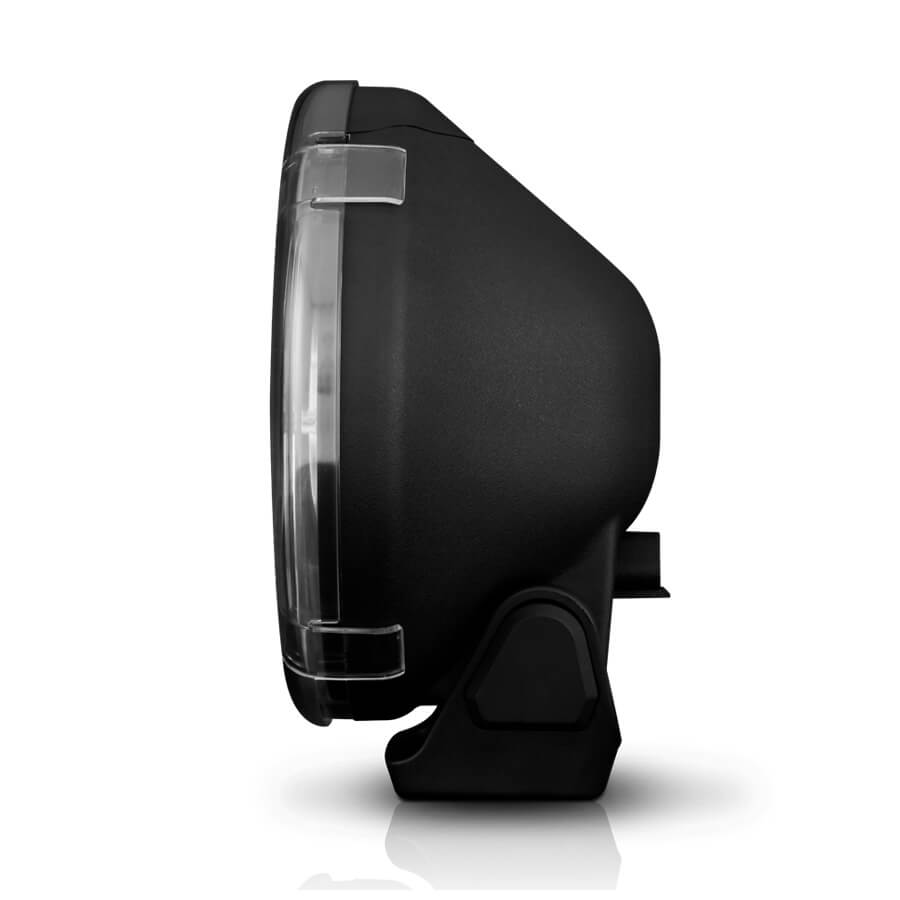

PROJECT X - SERIES ONE FF.90
PROJECT X - SERIES ONE FF.90
SKU:AL538802-1
PRODUCT OVERVIEW
PRODUCT OVERVIEW
Connect with the Wild with the PROJECT X - Series One Free Form LED auxiliary lights. The Series One utilizes enhanced free form optics to capture and focus more of the light generated from the LEDs to produce a greater
READ MORE
KEY SPECS
KEY SPECS
- Input Voltage : 9-33V
- LED Type : 15W XHP50.2 Cree® LEDs
- Operating Temp : -40°F to 149°F
- Color Temp : 5000°K
- Color Rendering Index : 70
- Raw Lumens : 5,700
Returns & Limited Warranty Policy
This “Returns & Limited Warranty Policy” contains the ADC Solutions Offroad and Adventure, LLC.(“PROJECT X”) limited warranty (“Limited Warranty”), our return policy, and other information relevant to customers after purchasing PROJECT X’s products (“PROJECT X Products”). By making a purchase of any PROJECT X Products, you agree to be bound by this Returns & Limited Warranty Policy. If you are not eligible or do not agree to any of the terms of this Returns & Limited Warranty Policy, do not use a PROJECT X Product. This Returns & Limited Warranty Policy is hereby incorporated into, and made a part of, PROJECT X’ s Terms of Use. Capitalized terms used but not defined in this Returns & Limited Warranty Policy have the meaning given to them in the Terms of Use. We urge you to read and become familiar with the Terms of Use as they may affect your legal rights.
THE RETURN POLICY IN SECTION 3 BELOW ONLY APPLIES TO PROJECT X PRODUCTS PURCHASED DIRECTLY FROM PROJECT X [(i.e. FROM WWW.PROJECTXOFFROAD.COM)]. IF YOU PURCHASED YOUR PROJECT X PRODUCT THROUGH A THIRD-PARTY AUTHORIZED RETAILER (AN “AUTHORIZED RETAILER”), ANY RETURN OF YOUR PROJECT X PRODUCT SHOULD BE MADE THROUGH SUCH AUTHORIZED RETAILER’S RETURN CHANNELS. PROJECT X WILL NOT DIRECTLY ACCEPT RETURNS OF PROJECT X PRODUCTS PURCHASED THROUGH AUTHORIZED RETAILERS. HOWEVER, THE BELOW POLICY SHALL APPLY TO WARRANTY CLAIMS FOR SUCH PROJECT X PRODUCTS PURCHASED THROUGH AUTHORIZED RETAILERS.
PROJECT X MAKES NO WARRANTY OF ANY KIND WITH RESPECT TO THE PROJECT X PRODUCTS OTHER THAN THE LIMITED WARRANTY PROVIDED UNDER SECTION 2 BELOW.
- Product Warnings
PLEASE REVIEW ALL OF THE PROJECT X PRODUCT WARNINGS FOR YOUR PROJECT X PRODUCT BEFORE USING THEM FOUND IN YOUR PROJECT X PRODUCT’S INSTRUCTION MANUAL. FAILURE TO COMPLY WITH THE PROJECT X PRODUCT WARNINGS WILL INVALIDATE THE BELOW LIMITED WARRANTY.
- Limited Warranty
EXCEPT AS OTHERWISE SET FORTH HEREIN, PROJECT X PRODUCTS ARE SOLD ONLY WITH THE LIMITED WARRANTY DESCRIBED HEREIN. THIRD-PARTY PRODUCTS ARE EXPRESSLY EXCLUDED FROM THIS LIMITED WARRANTY, AND ARE SUBJECT ONLY TO THOSE WARRANTIES EXTENDED BY THE APPLICABLE THIRD-PARTY MANUFACTURERS OF SUCH PRODUCTS, IF ANY. EXCEPT WHERE PROHIBITED BY LAW OR AS OTHERWISE PROVIDED HEREIN, PROJECT X HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, AND ANY WARRANTIES ARISING FROM A COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. PROJECT X PERSONNEL, SUPPLIERS, AND LICENSEES ARE NOT AUTHORIZED TO ALTER THESE WARRANTIES.
2.1. Warranty Periods
Each PROJECT X Product shall have a limited warranty period (“Warranty Period”) in accordance with Table 1 below:
Product | Warranty Period |
Driving Lights | Lifetime Warranty on construction and workmanship. |
Headlights | Lifetime Warranty on construction and workmanship. |
Rock Lights | Lifetime Warranty on construction and workmanship. |
Switch Boxes | 1-year limited warranty against defects in material and workmanship for the original purchaser. |
Blizzard Box | 1-year limited warranty against defects in material and workmanship for the original purchaser. |
Accessories | 30 days against defects in material and workmanship for the original purchaser. |
TYPE S Auto | 1-year limited warranty against defects in material and workmanship for the original purchaser. |
The applicable Warranty Period for each PROJECT X and TYPE S Auto Product commences on the date of original purchase by the first end-user of the PROJECT X and TYPE S Auto Product. Claims of defect brought after the applicable Warranty Period will not be covered by this Limited Warranty.
2.2. Conditions of Limited Warranty
Provided the following conditions are met, if your new PROJECT X Product is found to be defective, PROJECT X will repair defects in your PROJECT X Product(s) (or replace such PROJECT X Product(s)) during the applicable Warranty Period, without charge for parts or labor:
All repairs must be performed by PROJECT X (e.g. if you, or someone else, have tampered with your PROJECT X Product, your Limited Warranty shall be void).
All claims under the Limited Warranty must be accompanied by a copy of the sales receipt, bill of sale, or other proof of purchase (collectively, your “Proof of Purchase”).
The equipment must not have been altered or damaged through:
negligence, accident, improper operation or handling, neglect, tampering, abuse, unusual physical stress, or failure to follow the product instructions for installation, use, or care;
incorrect or inadequate maintenance, cleaning, or care of the PROJECT X Product; or
normal wear and tear of the PROJECT X Product.
Repair or replacement parts supplied by PROJECT X under this Limited Warranty are protected only for the unexpired portion of the original applicable Warranty Period.
This is a “repair or replace” Limited Warranty only, and does not cover costs related to the installation, removal or reinstallation of the PROJECT X Product.
Claims of defect brought after the applicable Warranty Period will not be covered by this Limited Warranty.
This Limited Warranty extends only to the original purchaser of the applicable PROJECT X Product.
PROJECT X will not be responsible under this Limited Warranty or otherwise for defects or damage caused by any ancillary equipment not furnished by PROJECT X which is attached to or used in connection with the PROJECT X Product(s), and all such equipment is expressly excluded from this Limited Warranty, regardless if such damage is caused by use in connection with the PROJECT X Product(s).
This Limited Warranty does not extend to consumable parts, such as batteries, or any third-party products that buyer may use or purchase in conjunction with the PROJECT X Products.
This Limited Warranty does not cover the cost of shipping outside of North America (however shipping within North America shall be at no cost to the customer).
2.3. How to Make a Claim under the Limited Warranty
PLEASE KEEP THE BOX THAT YOUR PROJECT X PRODUCT ARRIVED IN, ALONG WITH ALL ORIGINAL PACKAGING. IF YOU NO LONGER POSSESS THE ORIGINAL PACKAGING, YOU MAY SEND BACK THE PROJECT X PRODUCT IN YOUR OWN PACKAGING, PROVIDED IT IS ABLE TO SAFELY SECURE THE PROJECT X PRODUCT IN TRANSIT. HOWEVER, YOU MAY BE DISQUALIFIED FROM COVERAGE UNDER THIS LIMITED WARRANTY IF YOUR PROJECT X PRODUCT ARRIVES AT PROJECT X’S WAREHOUSE WITH DAMAGE RESULTING FROM SHIPPING.
To make a claim under this Limited Warranty, you must contact us within the Warranty Period, and you will need to provide a valid Proof of Purchase. To begin making a warranty claim, please contact PROJECT X by emailing info@projectxoffroad.com, or calling 1-866-294-9244 during PROJECT X ’s regular business hours (Monday through Friday 8:00 am to 5:00 pm PST).
We may be able to, but are not obligated to, service your PROJECT X Product or resolve your problem remotely through our after-sale customer service. Please contact us by emailing info@projectxoffroad.com, or calling 1-866-294-9244 during PROJECT X’s regular business hours (Monday through Friday 8:00 am to 5:00 pm PST) so that we can, in our discretion, attempt to diagnose and resolve the problem remotely.
If PROJECT X determines that your identified defect may be covered by this Limited Warranty, PROJECT X will issue you a return material authorization (“RMA”), and you must then return the PROJECT X Product in question to PROJECT X using the instructions provided with such RMA and pre-paid shipping label to be provided by PROJECT X with the RMA. PROJECT X is not liable for PROJECT X Products that are damaged or lost in transit if you fail to follow PROJECT X’s shipping instructions. PLEASE SHIP YOUR PROJECT X PRODUCT TO PROJECT X IN ITS THE ORIGINAL PACKAGING. IF YOU NO LONGER POSSESS THE ORIGINAL PACKAGING, YOU MAY SEND BACK THE PROJECT X PRODUCT IN YOUR OWN PACKAGING, PROVIDED IT IS ABLE TO SAFELY SECURE THE PROJECT X PRODUCT IN TRANSIT. HOWEVER, YOU MAY BE DISQUALIFIED FROM COVERAGE UNDER THIS LIMITED WARRANTY IF YOUR PROJECT X PRODUCT ARRIVES AT PROJECT X’S WAREHOUSE WITH DAMAGE RESULTING FROM SHIPPING.
If PROJECT X, in its reasonable discretion, determines that a PROJECT X Product has a defect in materials or workmanship covered by this Limited Warranty, PROJECT X shall, at its option, repair or replace the defective PROJECT X Product at no cost to you (other than the cost of shipping outside of North America, which shall be your responsibility).
If identical materials are not available at the time of repair or replacement, PROJECT X may, at its option, substitute materials of comparable quality or provide you with a refund of the purchase price for your PROJECT X Product as set forth on your Proof of Purchase (excluding any shipping costs paid by you for your original purchase). PROJECT X will endeavor to provide you with the repair and/or replacement services offered hereunder within a reasonable period of time. Your sole and exclusive remedy for damage or defect covered by this Limited Warranty, and our sole and entire liability is for us to repair the damage or defect, which may require us to replace certain parts, or replace the PROJECT X Product (in each case, as set forth herein). Please note that replacement parts provided by PROJECT X may not be new, but they will be in good working order and at least functionally equivalent to the original PROJECT X Product or part. Replacement parts may come with different serial numbers. If you would not like us to repair your PROJECT X Product and prefer to return it for a refund, please see our return policy below, noting that we only accept returns within sixty (60) days of your receipt of the PROJECT X Product. Repaired PROJECT X Products are warranted as above for the remainder of the Warranty Period that applied to the original Product.
SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1-866-294-9244 DURING REGULAR BUSINESS HOURS MONDAY THROUGH FRIDAY 9:00 AM TO 5:00 PM PST OR EMAIL US AT INFO@PROJECTXOFFROAD.COM.
- Returns Policy
If you are not satisfied with your PROJECT X Product that was purchased directly from PROJECT X, you may return your PROJECT X Product within the first sixty (60) days following your receipt of the PROJECT X Product for a refund, subject to the terms and conditions of this return policy.
PLEASE KEEP THE BOX THAT YOUR PROJECT X PRODUCT ARRIVED IN, ALONG WITH ALL ORIGINAL PACKAGING. IF YOU NO LONGER POSSESS THE ORIGINAL PACKAGING, YOU MAY SEND BACK THE PROJECT X PRODUCT IN YOUR OWN PACKAGING, PROVIDED IT IS ABLE TO SAFELY SECURE THE PROJECT X PRODUCT IN TRANSIT. HOWEVER, WE MAY NOT ACCEPT YOUR RETURN, AND YOU MAY BE DISQUALIFIED FROM COVERAGE UNDER THE LIMITED WARRANTY, IF YOUR PROJECT X PRODUCT ARRIVES AT PROJECT X’S WAREHOUSE WITH DAMAGE RESULTING FROM SHIPPING.
Except for returns of PROJECT X Products covered under the Limited Warranty, all other returns must be made within sixty (60) days of your receipt of the PROJECT X Product. To initiate a return, please submit a return request here and we will issue you a RMA number and a pre-paid shipping label. Upon our receipt of the PROJECT X Product at our warehouse, we will inspect the PROJECT X Product and, if eligible, process the return. Please allow at least 10 business days for the refund to be credited to you. Although PROJECT X shall refund your purchase price upon your return of an eligible PROJECT X Product in accordance with these conditions, PROJECT X shall not refund to you any shipping costs that you paid for your original purchase, if any.
We do not permit returns in the following situations:
If your PROJECT X Product is damaged during shipping to PROJECT X if you did not return the PROJECT X Product in its original box and packaging;
If you fail to return the PROJECT X Product with all of its original accessories and attachments;
If you do not include legal Proof of Purchase with your return;
If the PROJECT X Product is no longer in new or like-new condition, or, if damaged, you do not provide proof that the damage occurred in transit;
If your PROJECT X Product is damaged or defective and is not covered by the above Limited Warranty; or
If any product labels, serial numbers, waterproof marks, etc. on the PROJECT X Product show signs of tampering or alteration.
You agree and understand that it is necessary for PROJECT X to collect, process and use your data to perform the services offered hereunder. PROJECT X may contact you to inquire about your satisfaction with our service or to notify you about any PROJECT X Product recalls or safety issues. Please see our Privacy Policy for more information about how we treat your data.
Share this product
See The Difference

Not just bright. Brilliant.
All lights are not created equal. PROJECT X Series One off-road lights are created with enhanced free form optics to capture and focus the maximum amount of light generated by the LEDs. This Optic Drive technology means a stronger, more penetrating beam to illuminate the adventure ahead.

Cree quality, PROJECT X performance.
The best driving lights need the best LEDs. And for the best LEDs, you need Cree. Our Series One auxiliary lights incorporate Cree® XHP50.2 LED chip sets, delivering a 5000K white color and 3800 raw lumens of brightness. The reliability, efficiency and power of Cree meet PROJECT X innovation and performance—any questions?

Superior Optics
The proof is in the data - the Series One's unique design creates a superior optic in a lightweight package that will perform in any condition.

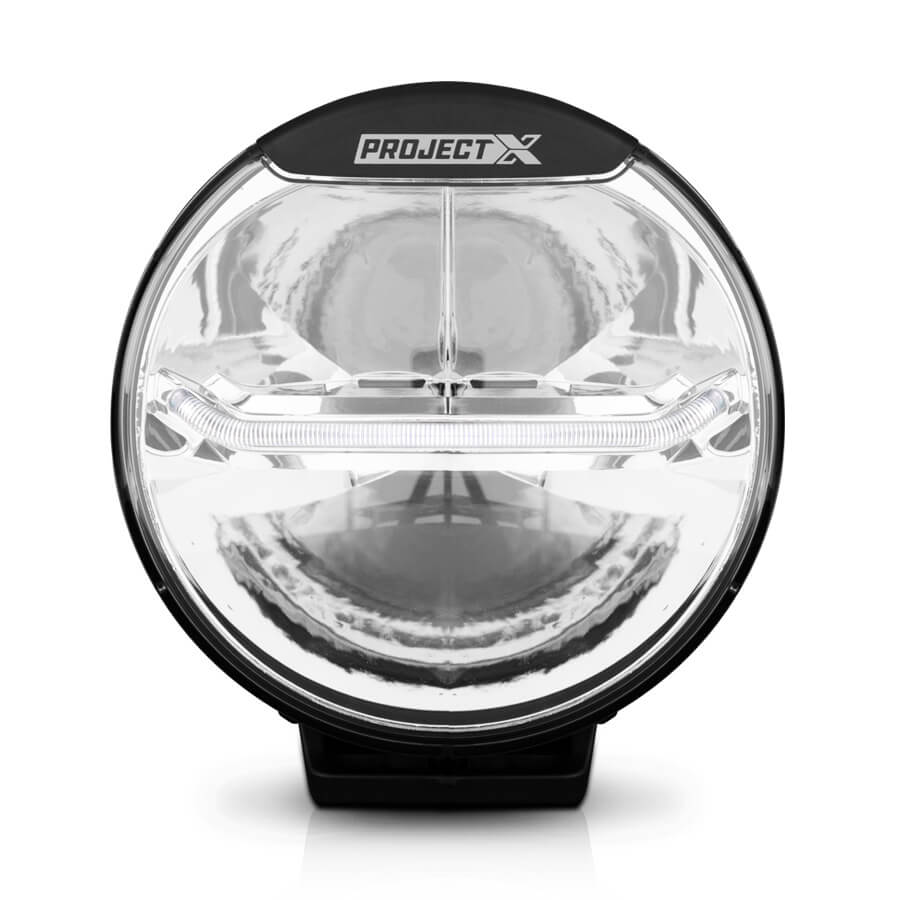

LED Front Position Light Pipe
Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety.

Driven by the details
When it comes to the look of your vehicle, every detail matters. Our 9-inch round Series One LED driving lights include glare shield caps in Black and PROJECT X Green, so you can customize your look and ride in style.
ABOUT
ABOUT
Drawing inspiration from traditional halogen lights, the FF line of lights offers a recognizable reflector housing, combining the warmth of traditional light with the efficiency and output of LED technology.
FAQS
FAQS
- Why SERIES ONE?
PROJECT X Series One lights deliver exceptional power efficiency, cutting-edge optics, lightweight construction, and timeless styling, making them the ideal choice for any automotive lighting application.
Power Efficiency to Lumen Output: These lights excel in converting power into luminous output, ensuring maximum brightness without draining excessive power.
Enhanced Free Form "Optic Drive" Technology: Leveraging advanced free form optics, these lights capture and concentrate a higher percentage of emitted light from the LEDs. This results in a superior penetrating light output that eliminates wasted light, directing it precisely where it's needed on the road.
Lightweight Design: Despite their powerful performance, Series One lights boast a lightweight construction, making them easy to install and maneuver without adding unnecessary bulk to your vehicle.
"Old School" Styling: Drawing inspiration from classic Halogen styling, these lights feature a Halogen-style reflector bowl and emit light at a warm color temperature akin to traditional Halogen lights. This nostalgic design, combined with modern LED technology, offers a unique blend of vintage aesthetics and contemporary performance. - Why warm white over the standard daylight White?
Enhanced Depth Perception: Warm white light tends to enhance depth perception, allowing drivers to better judge distances and curves on the trail, leading to improved precision and safety during night drives.
Reduced Glare: Warm white light produces a softer and more diffused glow compared to daylight white, which helps reduce glare and eye strain for drivers navigating the track in the dark.
Styling: Evokes a sense of nostalgia with its classic, old-school Halogen-inspired styling. - Wait... only Three LEDs?
Indeed. LEDs are available in a range of sizes. We meticulously selected the optimal size-to-light ratio and pair it with our "Enhanced Free Form Optics Drive Technology." This innovative technology captures and concentrates more light, resulting in a powerful penetrating beam that effectively illuminates the road ahead. By minimizing wasted light and directing the beam precisely where it's needed, we ensure maximum efficiency and unparalleled performance. - What are beam patterns and why is it important?
Beam pattern refers to the distribution of light emitted by a light source, typically depicted as a pattern or shape projected onto a surface. It describes how light is dispersed in different directions and angles from the source.
Spot Beam (Also called a pencil beam): Produces a narrow and focused beam of light with a long reach. It provides intense illumination in a straight line, making it ideal for long-distance visibility and spotting objects or obstacles ahead.
Flood Beam (Also called a broad beam): The flood beam pattern emits a wide and diffused beam of light with a broad coverage area. It spreads light horizontally and vertically, illuminating a large area with uniform brightness.
Combo Beam: The combo beam pattern combines both spot and flood beams within a single light fixture, offering versatility for different lighting needs. It typically features a central spot beam surrounded by peripheral flood beams. - Raw Lumens, Effective Lumens what the difference?
Raw lumens refer to the total amount of light emitted by a light source, measured without considering any factors that may affect its efficiency or performance. On the other hand, effective lumens includes those factors such as optics, reflectors, and other components that may influence the light's actual output and performance. Effective lumens provide a more accurate representation of the light's brightness as perceived by the human eye and its practical utility in real-world conditions. Raw lumens quantify the total light output of a source, effective lumens measure the light that is useful and visible in a given application. - Candela, Lumens, Lux, Watts does it all mean?
Candela, Lumens, Lux, Watts are all measurements related to light, but they represent different aspects of light output and consumption.
Candela measures the intensity of light in a specific direction, Lumens quantify the total amount of light emitted by a source, Lux measures the brightness of light on a surface area, and Watts indicate the electrical power consumed by a light source. Historically, watts were often associated with brightness, as the belief was the more electricity a light source consumed, the brighter it would be, today with LED's and optics that is not the case.
Understanding these measurements helps make informed decisions when selecting lighting products based on their brightness, efficiency, and suitability for different applications. - What’s a Kelvin? No, not Kevin from the office…
Kelvin temperature refers to the color temperature of light emitted by a light source. It is measured in degrees and indicates the hue or color appearance of the light.
Lower Kelvin temperatures, typically ranging from 2000K to 5000K, produce warm white or yellowish light.
Higher Temperatures emit a cooler white or bluish light. - How do I mount my Lights?
These are universal lights which can be installed on various locations. If you have a specific location or a bracket designed for light mounting, utilize the provided hardware, and select one of the two mounting holes on the bottom of the light. Once mounted, remove the side-end caps to expose the bolt connecting the mount to the light. Loosen this screw to facilitate adjustment and tighten it once you've achieved your desired positioning. - Can this lights be installed sideways or upside?
Absolutely! Just make sure to tighten all the hardware securely.
Please note that the beam pattern was optimized for upright installation, so rotating the light will also rotate the beam pattern accordingly. - How do I wire my lights?

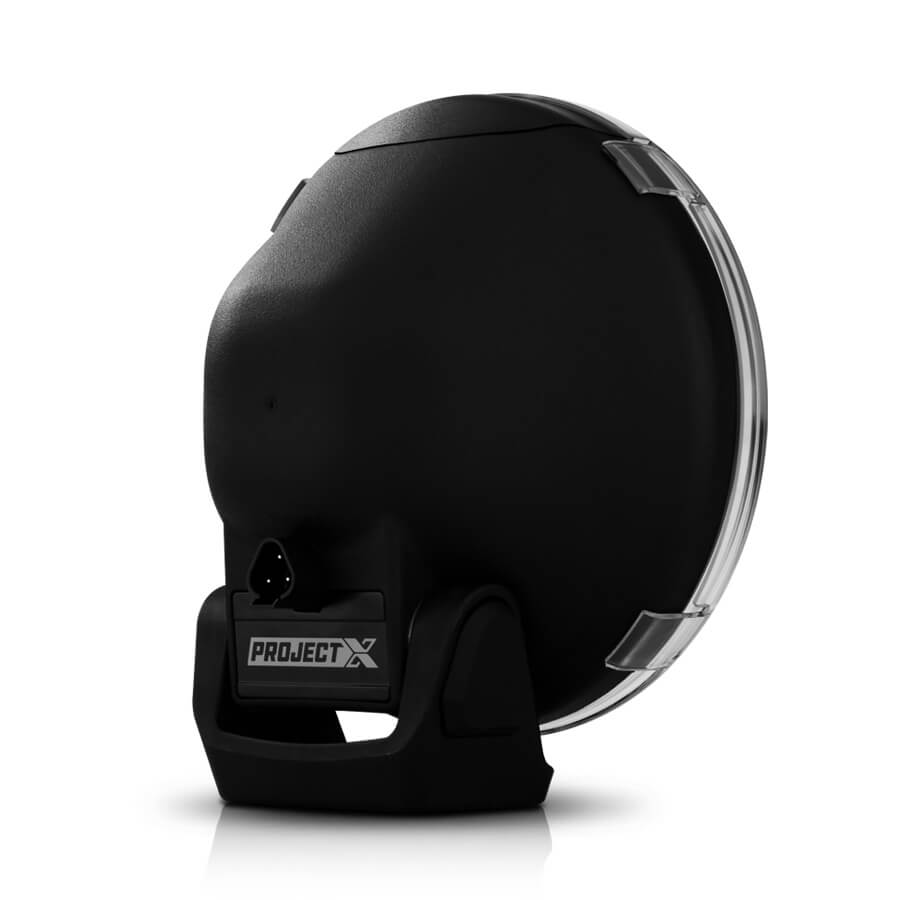

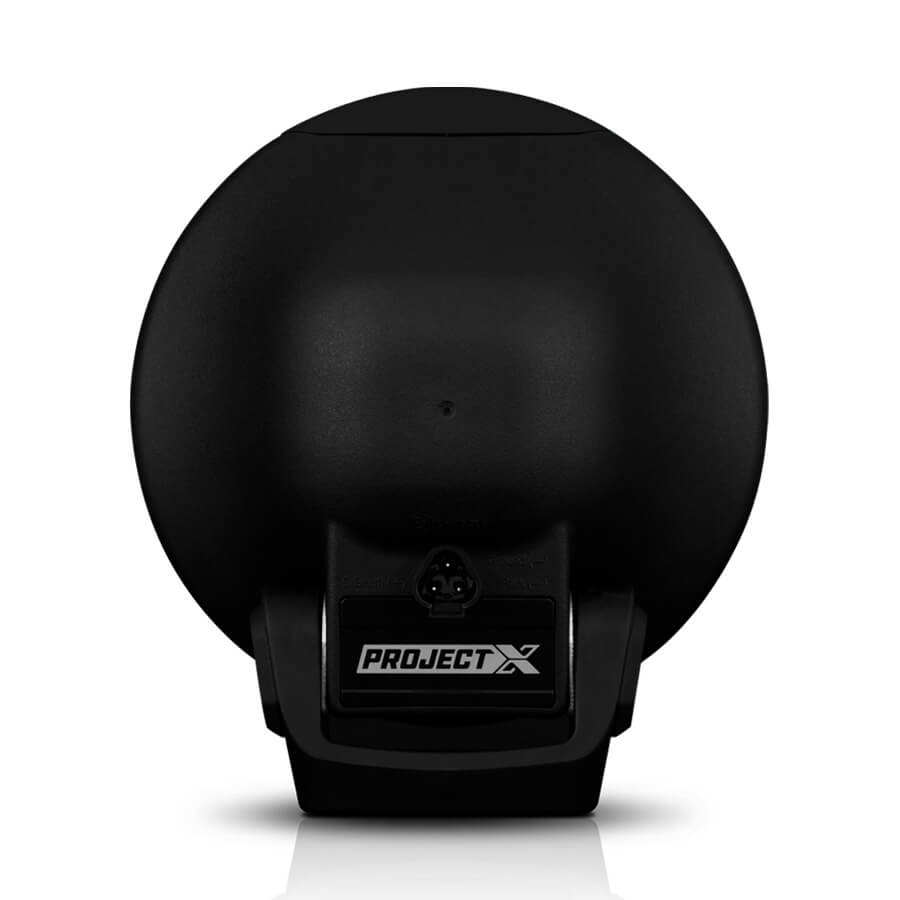

Our lights include a pigtail wiring harness that plugs into the back of the light, the harness has three exposed wires. The Black wire serves as the Ground/Negative (-), the Red wire provides power to the primary Light (+), and the Brown wire supplies power to the Positional light. Streamline the wiring process using our Ghost Box system, or you can utilize the information provided above to integrate it into your own wiring system. - How can I control the lights?
There are several ways to control the lights below are the most common:
Ghost Box by PROJECT X: We highly recommend incorporating our Ghost Box or Ghost Box System into your setup. Much like an Auxiliary Switch Panel, it streamlines and tidies up wiring, providing additional benefits such as app-based control, individual ON/Strobe and Dimming capabilities for each circuit, as well as features like Low Voltage Protection and Over-Current protection, among others. See more details here.
Manual Switches: Install manual switches to control the off-road lights directly. These switches can be mounted on the dashboard or any convenient location within reach of the driver. They allow you to turn the lights on or off as needed.
Relay Systems: Relay systems provide a more sophisticated way to control off-road lights. They involve using a relay to manage the high current flow required by the lights. The relay is activated by a switch or a trigger signal, which can come from the vehicle's OEM lighting system, an auxiliary switch panel, or a dedicated aftermarket switch.
Auxiliary Switch Panels: Specialized control panels designed to integrate 12V accessories, into your vehicle's electrical system. Typically, these panels feature a centralized main hub where the leads from all the 12V accessories connect. Auxiliary switch panels are commonly installed in the engine compartment or another accessible location. A switch panel helps avoid cluttering your vehicle's dashboard with multiple individual switches for each accessory. Instead, you have a single, dedicated control panel specifically designed for managing all your 12V items.
Integrated Lighting Systems: Some off-road vehicles come with integrated lighting systems that allow you to control aftermarket lights through the vehicle's existing controls or infotainment system. - How do I power just the Positional Light?
Our lights come with a pigtail featuring three exposed wires for easy installation. The Black wire serves as the Ground/Negative (-), while the Brown wire supplies power to the Positional light (+). You can connect the Brown wire to any positive (+) source, whether it's a Ghost Box, relay, switch, AUX switch panel, your imagination is the limit. It's worth noting that the Positional light draws less than 1 amp at 12V, ensuring efficient power usage. - How do I change the Glare Cap?
We include a Green and Black Glare cap, to remove un-clip the cap from the back edge of the lamp and pull. To replace align the clip and push down. Feel Free to paint a cap to match your vehicles look. - Is a lens cover included with my Light?
Yes, we provided a clear lens cover in the box. Additional covers can be purchased, we offer Clear, blackout and coming soon an Orange lens cover. - What is an ECE Rating?
An ECE rating on a light refers to compliance with regulations set by the Economic Commission for Europe (ECE), which is a United Nations agency responsible for harmonizing vehicle.
SPECS
SPECS
- Input Voltage : 9-33V
- LED Power : 45W
- Current Draw @ 12V : 4.6A
- Operating Temp : -40°F to 149°F
- Heat Management : Active Thermal Management System (ATMS)
- Protection : Reverse Polarity, Protection
- EMC : ECE R10
- LED Type : 15W XHP50.2, Cree® LEDs
- No. LED’s : 3
- Color Temp : 5000°K
- Color Rendering Index : 70
- Raw Lumens : 5,700
- Effective Lumens : 2,500
- Candela (1 lamp) : 210,500
- Beam Length (1 lamp) : 1 lux @ 1574 Feet
- Beam Length (2 lamps) : 1 lux @ 2230 Feet
- Beam Width (1 lamp) : 1 lux @ 78 Feet
- Beam Width (2 lamps) : 1 lux @ 206 Feet
- Housing : Fiber Reinforced Polymer
- Lens : Hard coated Polycarbonate
- Hardware : Stainless Steel
- IP Rating : IP67
- Weight : 4.85 lbs
