PROJECT X - SERIES ONE FF.70 2021+ Bronco Roof Lightbar (6-Light) Kit
PROJECT X - SERIES ONE FF.70 2021+ Bronco Roof Lightbar (6-Light) Kit
SKU:CP538868-KIT
PRODUCT OVERVIEW
PRODUCT OVERVIEW

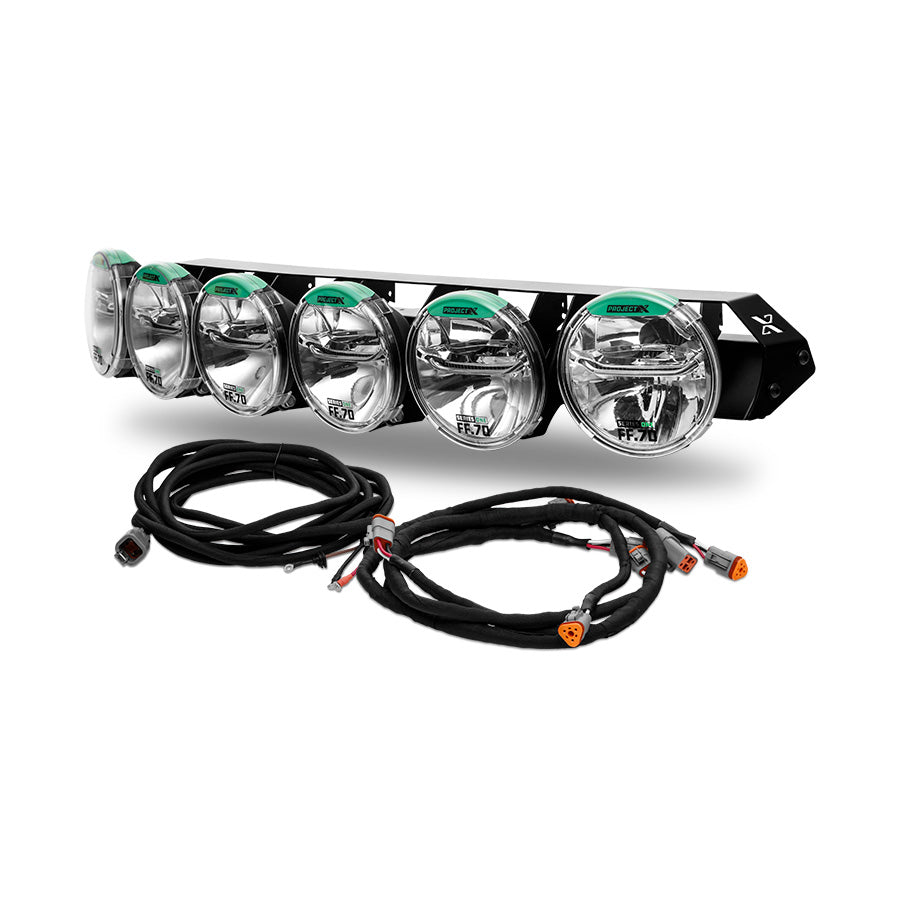

The Ultimate 2021+ Bronco LED Roof Bar package! This kit contains our bolt-on roof bracket, six SERIES ONE FF.70 Lights, our 6-into-1 roof bar harness, including all hardware and accessories. Everything you need for maximum forward-facing light output from your
READ MORE
KEY SPECS
KEY SPECS
- Application :
2021+ Bronco & Bronco Raptor
(Does not fit Bronco Sport) - Input Voltage : 9-33V
- Raw Lumens : 22,800
- Beam Pattern : Combo - Two Floods & Four Spots
- Mount Material : 304 Stainless Steel
- Heat Management : Active Thermal Management System (ATMS)
Returns & Limited Warranty Policy
This “Returns & Limited Warranty Policy” contains the ADC Solutions Offroad and Adventure, LLC.(“PROJECT X”) limited warranty (“Limited Warranty”), our return policy, and other information relevant to customers after purchasing PROJECT X’s products (“PROJECT X Products”). By making a purchase of any PROJECT X Products, you agree to be bound by this Returns & Limited Warranty Policy. If you are not eligible or do not agree to any of the terms of this Returns & Limited Warranty Policy, do not use a PROJECT X Product. This Returns & Limited Warranty Policy is hereby incorporated into, and made a part of, PROJECT X’ s Terms of Use. Capitalized terms used but not defined in this Returns & Limited Warranty Policy have the meaning given to them in the Terms of Use. We urge you to read and become familiar with the Terms of Use as they may affect your legal rights.
THE RETURN POLICY IN SECTION 3 BELOW ONLY APPLIES TO PROJECT X PRODUCTS PURCHASED DIRECTLY FROM PROJECT X [(i.e. FROM WWW.PROJECTXOFFROAD.COM)]. IF YOU PURCHASED YOUR PROJECT X PRODUCT THROUGH A THIRD-PARTY AUTHORIZED RETAILER (AN “AUTHORIZED RETAILER”), ANY RETURN OF YOUR PROJECT X PRODUCT SHOULD BE MADE THROUGH SUCH AUTHORIZED RETAILER’S RETURN CHANNELS. PROJECT X WILL NOT DIRECTLY ACCEPT RETURNS OF PROJECT X PRODUCTS PURCHASED THROUGH AUTHORIZED RETAILERS. HOWEVER, THE BELOW POLICY SHALL APPLY TO WARRANTY CLAIMS FOR SUCH PROJECT X PRODUCTS PURCHASED THROUGH AUTHORIZED RETAILERS.
PROJECT X MAKES NO WARRANTY OF ANY KIND WITH RESPECT TO THE PROJECT X PRODUCTS OTHER THAN THE LIMITED WARRANTY PROVIDED UNDER SECTION 2 BELOW.
- Product Warnings
PLEASE REVIEW ALL OF THE PROJECT X PRODUCT WARNINGS FOR YOUR PROJECT X PRODUCT BEFORE USING THEM FOUND IN YOUR PROJECT X PRODUCT’S INSTRUCTION MANUAL. FAILURE TO COMPLY WITH THE PROJECT X PRODUCT WARNINGS WILL INVALIDATE THE BELOW LIMITED WARRANTY.
- Limited Warranty
EXCEPT AS OTHERWISE SET FORTH HEREIN, PROJECT X PRODUCTS ARE SOLD ONLY WITH THE LIMITED WARRANTY DESCRIBED HEREIN. THIRD-PARTY PRODUCTS ARE EXPRESSLY EXCLUDED FROM THIS LIMITED WARRANTY, AND ARE SUBJECT ONLY TO THOSE WARRANTIES EXTENDED BY THE APPLICABLE THIRD-PARTY MANUFACTURERS OF SUCH PRODUCTS, IF ANY. EXCEPT WHERE PROHIBITED BY LAW OR AS OTHERWISE PROVIDED HEREIN, PROJECT X HEREBY EXPRESSLY DISCLAIMS ALL WARRANTIES EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, AND ANY WARRANTIES ARISING FROM A COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. PROJECT X PERSONNEL, SUPPLIERS, AND LICENSEES ARE NOT AUTHORIZED TO ALTER THESE WARRANTIES.
2.1. Warranty Periods
Each PROJECT X Product shall have a limited warranty period (“Warranty Period”) in accordance with Table 1 below:
Product | Warranty Period |
Driving Lights | Lifetime Warranty on construction and workmanship. |
Headlights | Lifetime Warranty on construction and workmanship. |
Rock Lights | Lifetime Warranty on construction and workmanship. |
Switch Boxes | 1-year limited warranty against defects in material and workmanship for the original purchaser. |
Blizzard Box | 1-year limited warranty against defects in material and workmanship for the original purchaser. |
Accessories | 30 days against defects in material and workmanship for the original purchaser. |
TYPE S Auto | 1-year limited warranty against defects in material and workmanship for the original purchaser. |
The applicable Warranty Period for each PROJECT X and TYPE S Auto Product commences on the date of original purchase by the first end-user of the PROJECT X and TYPE S Auto Product. Claims of defect brought after the applicable Warranty Period will not be covered by this Limited Warranty.
2.2. Conditions of Limited Warranty
Provided the following conditions are met, if your new PROJECT X Product is found to be defective, PROJECT X will repair defects in your PROJECT X Product(s) (or replace such PROJECT X Product(s)) during the applicable Warranty Period, without charge for parts or labor:
All repairs must be performed by PROJECT X (e.g. if you, or someone else, have tampered with your PROJECT X Product, your Limited Warranty shall be void).
All claims under the Limited Warranty must be accompanied by a copy of the sales receipt, bill of sale, or other proof of purchase (collectively, your “Proof of Purchase”).
The equipment must not have been altered or damaged through:
negligence, accident, improper operation or handling, neglect, tampering, abuse, unusual physical stress, or failure to follow the product instructions for installation, use, or care;
incorrect or inadequate maintenance, cleaning, or care of the PROJECT X Product; or
normal wear and tear of the PROJECT X Product.
Repair or replacement parts supplied by PROJECT X under this Limited Warranty are protected only for the unexpired portion of the original applicable Warranty Period.
This is a “repair or replace” Limited Warranty only, and does not cover costs related to the installation, removal or reinstallation of the PROJECT X Product.
Claims of defect brought after the applicable Warranty Period will not be covered by this Limited Warranty.
This Limited Warranty extends only to the original purchaser of the applicable PROJECT X Product.
PROJECT X will not be responsible under this Limited Warranty or otherwise for defects or damage caused by any ancillary equipment not furnished by PROJECT X which is attached to or used in connection with the PROJECT X Product(s), and all such equipment is expressly excluded from this Limited Warranty, regardless if such damage is caused by use in connection with the PROJECT X Product(s).
This Limited Warranty does not extend to consumable parts, such as batteries, or any third-party products that buyer may use or purchase in conjunction with the PROJECT X Products.
This Limited Warranty does not cover the cost of shipping outside of North America (however shipping within North America shall be at no cost to the customer).
2.3. How to Make a Claim under the Limited Warranty
PLEASE KEEP THE BOX THAT YOUR PROJECT X PRODUCT ARRIVED IN, ALONG WITH ALL ORIGINAL PACKAGING. IF YOU NO LONGER POSSESS THE ORIGINAL PACKAGING, YOU MAY SEND BACK THE PROJECT X PRODUCT IN YOUR OWN PACKAGING, PROVIDED IT IS ABLE TO SAFELY SECURE THE PROJECT X PRODUCT IN TRANSIT. HOWEVER, YOU MAY BE DISQUALIFIED FROM COVERAGE UNDER THIS LIMITED WARRANTY IF YOUR PROJECT X PRODUCT ARRIVES AT PROJECT X’S WAREHOUSE WITH DAMAGE RESULTING FROM SHIPPING.
To make a claim under this Limited Warranty, you must contact us within the Warranty Period, and you will need to provide a valid Proof of Purchase. To begin making a warranty claim, please contact PROJECT X by emailing info@projectxoffroad.com, or calling 1-866-294-9244 during PROJECT X ’s regular business hours (Monday through Friday 8:00 am to 5:00 pm PST).
We may be able to, but are not obligated to, service your PROJECT X Product or resolve your problem remotely through our after-sale customer service. Please contact us by emailing info@projectxoffroad.com, or calling 1-866-294-9244 during PROJECT X’s regular business hours (Monday through Friday 8:00 am to 5:00 pm PST) so that we can, in our discretion, attempt to diagnose and resolve the problem remotely.
If PROJECT X determines that your identified defect may be covered by this Limited Warranty, PROJECT X will issue you a return material authorization (“RMA”), and you must then return the PROJECT X Product in question to PROJECT X using the instructions provided with such RMA and pre-paid shipping label to be provided by PROJECT X with the RMA. PROJECT X is not liable for PROJECT X Products that are damaged or lost in transit if you fail to follow PROJECT X’s shipping instructions. PLEASE SHIP YOUR PROJECT X PRODUCT TO PROJECT X IN ITS THE ORIGINAL PACKAGING. IF YOU NO LONGER POSSESS THE ORIGINAL PACKAGING, YOU MAY SEND BACK THE PROJECT X PRODUCT IN YOUR OWN PACKAGING, PROVIDED IT IS ABLE TO SAFELY SECURE THE PROJECT X PRODUCT IN TRANSIT. HOWEVER, YOU MAY BE DISQUALIFIED FROM COVERAGE UNDER THIS LIMITED WARRANTY IF YOUR PROJECT X PRODUCT ARRIVES AT PROJECT X’S WAREHOUSE WITH DAMAGE RESULTING FROM SHIPPING.
If PROJECT X, in its reasonable discretion, determines that a PROJECT X Product has a defect in materials or workmanship covered by this Limited Warranty, PROJECT X shall, at its option, repair or replace the defective PROJECT X Product at no cost to you (other than the cost of shipping outside of North America, which shall be your responsibility).
If identical materials are not available at the time of repair or replacement, PROJECT X may, at its option, substitute materials of comparable quality or provide you with a refund of the purchase price for your PROJECT X Product as set forth on your Proof of Purchase (excluding any shipping costs paid by you for your original purchase). PROJECT X will endeavor to provide you with the repair and/or replacement services offered hereunder within a reasonable period of time. Your sole and exclusive remedy for damage or defect covered by this Limited Warranty, and our sole and entire liability is for us to repair the damage or defect, which may require us to replace certain parts, or replace the PROJECT X Product (in each case, as set forth herein). Please note that replacement parts provided by PROJECT X may not be new, but they will be in good working order and at least functionally equivalent to the original PROJECT X Product or part. Replacement parts may come with different serial numbers. If you would not like us to repair your PROJECT X Product and prefer to return it for a refund, please see our return policy below, noting that we only accept returns within sixty (60) days of your receipt of the PROJECT X Product. Repaired PROJECT X Products are warranted as above for the remainder of the Warranty Period that applied to the original Product.
SHOULD YOU HAVE ANY QUESTIONS ABOUT SERVICE RECEIVED OR IF YOU WOULD LIKE ASSISTANCE IN OBTAINING SERVICE, PLEASE CALL TOLL FREE 1-866-294-9244 DURING REGULAR BUSINESS HOURS MONDAY THROUGH FRIDAY 9:00 AM TO 5:00 PM PST OR EMAIL US AT INFO@PROJECTXOFFROAD.COM.
- Returns Policy
If you are not satisfied with your PROJECT X Product that was purchased directly from PROJECT X, you may return your PROJECT X Product within the first sixty (60) days following your receipt of the PROJECT X Product for a refund, subject to the terms and conditions of this return policy.
PLEASE KEEP THE BOX THAT YOUR PROJECT X PRODUCT ARRIVED IN, ALONG WITH ALL ORIGINAL PACKAGING. IF YOU NO LONGER POSSESS THE ORIGINAL PACKAGING, YOU MAY SEND BACK THE PROJECT X PRODUCT IN YOUR OWN PACKAGING, PROVIDED IT IS ABLE TO SAFELY SECURE THE PROJECT X PRODUCT IN TRANSIT. HOWEVER, WE MAY NOT ACCEPT YOUR RETURN, AND YOU MAY BE DISQUALIFIED FROM COVERAGE UNDER THE LIMITED WARRANTY, IF YOUR PROJECT X PRODUCT ARRIVES AT PROJECT X’S WAREHOUSE WITH DAMAGE RESULTING FROM SHIPPING.
Except for returns of PROJECT X Products covered under the Limited Warranty, all other returns must be made within sixty (60) days of your receipt of the PROJECT X Product. To initiate a return, please submit a return request here and we will issue you a RMA number and a pre-paid shipping label. Upon our receipt of the PROJECT X Product at our warehouse, we will inspect the PROJECT X Product and, if eligible, process the return. Please allow at least 10 business days for the refund to be credited to you. Although PROJECT X shall refund your purchase price upon your return of an eligible PROJECT X Product in accordance with these conditions, PROJECT X shall not refund to you any shipping costs that you paid for your original purchase, if any.
We do not permit returns in the following situations:
If your PROJECT X Product is damaged during shipping to PROJECT X if you did not return the PROJECT X Product in its original box and packaging;
If you fail to return the PROJECT X Product with all of its original accessories and attachments;
If you do not include legal Proof of Purchase with your return;
If the PROJECT X Product is no longer in new or like-new condition, or, if damaged, you do not provide proof that the damage occurred in transit;
If your PROJECT X Product is damaged or defective and is not covered by the above Limited Warranty; or
If any product labels, serial numbers, waterproof marks, etc. on the PROJECT X Product show signs of tampering or alteration.
You agree and understand that it is necessary for PROJECT X to collect, process and use your data to perform the services offered hereunder. PROJECT X may contact you to inquire about your satisfaction with our service or to notify you about any PROJECT X Product recalls or safety issues. Please see our Privacy Policy for more information about how we treat your data.
Share this product
Install Video

The Ultimate Roof Light Kit

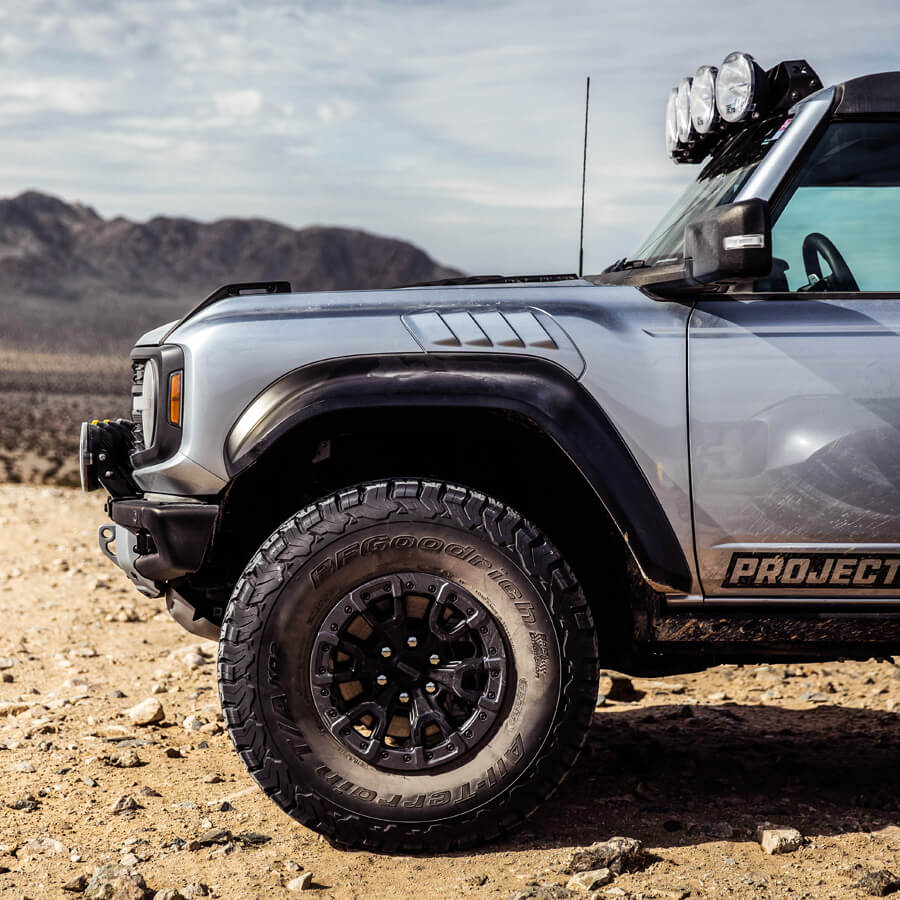

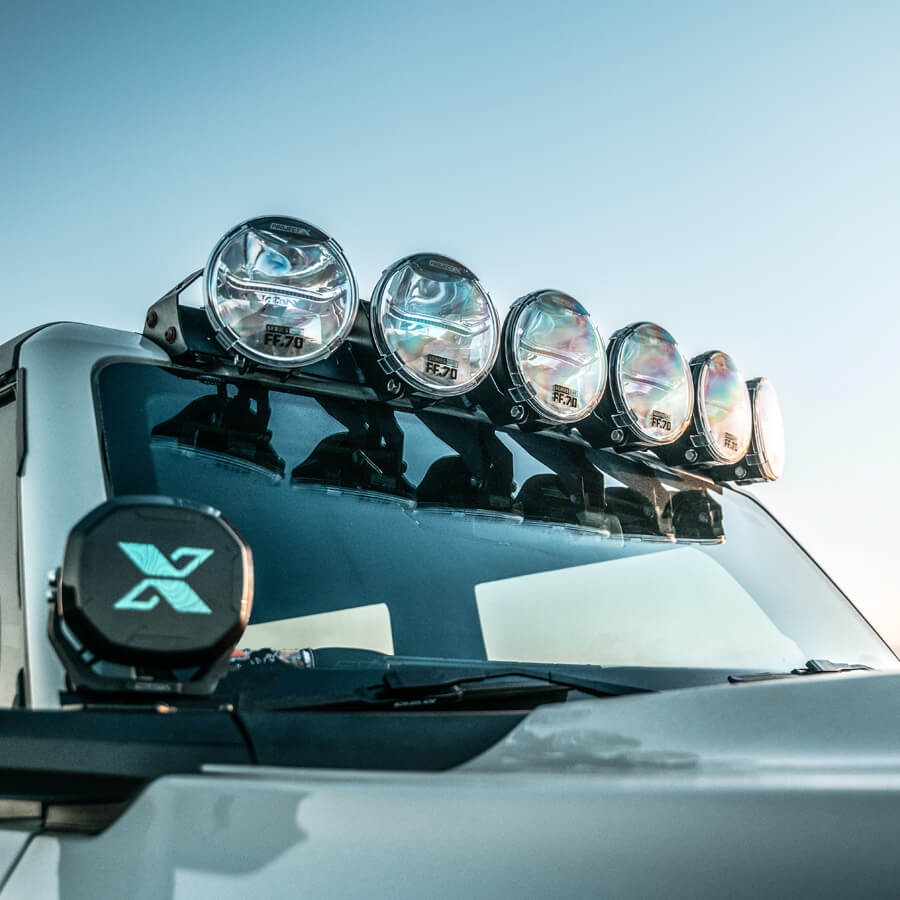

Elevate your night time trail rides with the new PROJECT X Bronco Roof Bar Kit. This package allows you to easily install six SERIES ONE FF.70's lights totaling 22,800 raw lumens in the pattern of your choosing on your Bronco's roof. Each component in this kit was designed and torture tested to handle any driving style, from mild trail rides to fast desert prerunning.
Bolt-On Design
Our bolt-on light bracket utilizes your Bronco's OEM Accessory Ready
ports on the roof, allowing you to use factory hardware for a secure installation. We supply the 6-to-1 splitter harness to easily wire your FF.70 lights' full power, DRL, and ground to a source of your choosing.

Modern Power, Classic Looks
The new Bronco pays homage to its legendary, Baja-winning predecessors. Don't bother with unsightly, tall LED bars with flimsy brackets that wobble on your roof. Our classic

The Complete Package
We thought of everything when we designed this roof bar. In addition to the FF.70's themselves, you get our bespoke Bronco roof bracket, 6-into-1 wiring harness with Deutsch connectors pre-installed, and all necessary hardware and wiring components for an easy DIY install. Simply bolt it on, connect it to your power and ground sources, and you're done!

Ghost Box Ready
If you've already got our Ghost Box Wireless Accessory Control Ecosystem installed on your Bronco, wiring this kit is a breeze. Simply tap the included harness source terminals to your wireless module's output channels, and you've got full control of your Roof Bar! We even included a pre-drilled mounting surface for an optional Ghost Box module install on the bracket itself.
ABOUT
ABOUT
The Ultimate 2021+ Bronco LED Roof Bar package! This kit contains our bolt-on roof bracket, six SERIES ONE FF.70 Lights, our 6-into-1 roof bar harness, including all hardware and accessories. Everything you need for maximum forward-facing light output from your Bronco's roof. Transform your 2021+ Ford Bronco's night-time trail-riding experience with the PROJECT X SERIES ONE 2021+ Bronco Roof Light Bar Kit. This comprehensive package is specifically designed to enhance your vehicle's forward-facing light output, combining modern power with a classic aesthetic. Ideal for Bronco owners looking to upgrade their off-road lighting setup, this comprehensive solution combines ease of installation, powerful illumination, to elevate your off-road experience. We engineered our brackets to pay homage to classic Baja race truck styling, while keeping wind noise to a minimum by keeping the mounting surface below the windshield line.
Pair and control your new Roof Light Bar with our the top-rated 12V Switch Panel, Ghost Box by PROJECT X (Sold Separately). Its wiring made simple, allowing you to quickly and easily install and start managing any 12V circuit. Control the Ghost Box via an optional keypad and/or your mobile device. Each circuit offers constant on, strobe, and dimming functions. Quickly cycle through the functions in order from a single button, via the app: turn off any functions you don't need and adjust the strobing and dimming. Each Ghost Box also features adjustable low voltage protection and over-current protection. Enhance your 12V experience with Ghost Box.
Application:
2021+ Ford Bronco 2-door
2021+ Ford Bronco 4-door
2022+ Ford Bronco Raptor
Does not fit Bronco Sport
FAQS
FAQS
- What is the difference between laser welding and MIG/TIG welding?
Laser welding is newer process to the offroad industry. Advancements in laser welding technology over the past few years have created new opportunities for product development and benefits in production. To put it simply, MIG and TIG welding require a gas and filler material during the welding process to join two metals together. With MIG welding (common production weld) it is common to have welds that require clean up and leave splatter around the product, but it is fast, strong and efficient. TIG welding is viewed to be the tried-and-true superior welding in most cases but requires a more skilled welder and is more time intensive which raises cost. Laser welding requires skilled calibration and controlled environments but can produce weld strength superior to both MIG and TIG welding, with zero filler or gas needed. Current laser welding technology can also create stronger welds than traditional MIG/TIG. Bottom line – laser welding has a high entry cost, high level of setup time and control but yields faster production time with cleaner, higher strength welds. But to ensure the quality, we on-vehicle test each component through the toughest conditions to ensure they will survive.
- What makes the harness “Ghost Box Ready”?
Cutting and Crimping can be challenging for enthusiasts new to 12v accessories; these can also be the most common failure points when done incorrectly. At PROJECT X we believe in making things “Simple Easy Smart” and so we have designed our wiring harnesses with our Ghost Box system in mind. Each PROJECT X wiring harness includes the 3-pin DT connector to plug into your PROJECT X light and the opposite end is already completed with a ring terminal and the GHOST BOX rubber caps preinstalled, allowing you to plug directly into your ecosystem and sync. It’s that simple, not wire cutting, crimping, soldering etc – we’ve done all the work so you just need a Philips head screw driver to connect it all together!
- Does 304 Stainless Rust?
You want the best. When you spend your hard-earned money on a premium product the last thing you want to see is the product rusting and looking like a poor reflection of your vehicle, or even worse – failing from deterioration. We take pride in our products as well, so we made all of our mounts out of 304 stainless steel, laser welded so there is no filler, and protected it all with powder-coating. We also include all stainless hardware so your PROJECT X system should look perfect for years to come.
- Why does a magnet stick to some parts of these stainless 304 mounts?
Note on “magnet testing”: 304 stainless steel contains very low carbon content which is generally the largest contributor to rust, this also makes most areas of the product non-magnetic; however, in areas where cold-work processes have occurred (such as bending) you could see some minor magnetic properties. This is a normal attribute and should not cause any alarm.
- What are the benefits of the Ghost Box vs the factory Bronco upfitter switches?
Why use the Ghost Box instead of the factory upfitter switches? The factory upfitter switches have some great functions but as you start to add more accessories you may find some limitations.
- Firstly, the upfitter switches are single function – on/off only. This means you will not be able to set products to dim or flash unless using any additional modules, and you would be locked into that function.
- Second, the upfitter switches are only active when the vehicle is powered on, so if you are looking to utilize any accessories while the vehicle is in the ignition-off position.
- Third, you are limited to 6 switches. This may be enough for you, but many people find themselves expanding to multiple accessories that will eventually require an additional switching system to control,
- Lastly, the maximum circuit size on the upfitter switches is 30amp and there is only a single 30 amp circuit included. That means if you want to run multiple high power lights or accessories you will need to add a relay to each circuit and do additional wiring.
The Ghost Box system addresses all of the above issues with an expandable ecosystem allowing for dedicated control of all your accessories.
- The Ghost Box allows for on-off, flash or dim functions while allowing you to use even when the vehicle is powered off and with the built in multi-level voltage protection you wont need to worry about draining your battery.
- Our keypad has 8 buttons ready to be programmed and you are able to merge circuits on the same ghost box to a single button to save space.
- The our kit comes with 4 modules (8 total circuits) but is expandable up to 24 modules (48 circuits) to control all of the accessories you could ever want to install.
- Each Ghost Box module has adjustable 20 and 40amp circuits, giving you all the necessary power for your accessories. When you don’t need the full amperage you can utilize the PROJECT X app and turn the amps down as low as you need to suit each accessory you connect.
- Can I merge all the DRL wires to a single circuit?
Our PROJECT X harnesses are designed to plug and play one set of lights for easy install, which means each DRL will be on a separate button. However, if you want to merge all of your DRLs onto a single circuit that is a great option to consolidate circuits. Each light DRL utilizes roughly 0.1 amps while running, meaning you can run all of them to any ghost box circuit.
What makes the Bronco Roof Mount Ghost Box ready?
Our SERIES ONE Bronco roof mount system is designed to be used with our harness and Ghost Box system mounted in the engine bay. However, if you are looking to only run power and ground, the mount does have provisions to mount a ghost box directly to it and run power and ground to it for full control.
- What are the torque specs for installation?
The Bronco accessory ready studs above the windshield are 10mm and have 7.7 ft-lbs / 92.4 inch-lbs torque spec
The PROJECT X Roof mount bolts (2 on each side) are 7/32 hex drive and have a 33ft-lbs torque spec
- Will the PROJECT X Bronco Roof Mount work with my roof rack?
The PROJECT X Bronco roof light mount utilizes the factory accessory ready bolts above the windshield and needs the entire area above the windshield for the mount. Due to this, it is not compatible with any roof rack system that utilizes the windshield accessory ready mounting points.
SPECS
SPECS
- Input Voltage : 9 - 33V
- LED Power Output : 180W
- Current Draw @ 12V : 18A
- Power Consumption : 216W
- Operating Temp : -40°F to 149°F
- Heat Management : Active Thermal Management System (ATMS)
- Protection : Reverse Polarity, Protection
- EMC : ECE R10
- LED Type : 15W XHP50.2, Cree® LEDs
- No. LED’s : 2 per Light
- Color Temp : 5000°K
- Color Rendering Index : 70
- Raw Lumens : 22,800
- Effective Lumens : 9,978
- Candela : 1,179,000
- Beam Length (1 lamp) : 1 lux @ 1443 Feet
- Beam Length (2 lamps) : 1 lux @ 2034 Feet
- Beam Width (1 lamp) : 1 lux @ 147 Feet
- Beam Width (2 lamps) : 1 lux @ 206 Feet
- Mount Material : 304 Stainless Steel
- Mount Coating : Black Powder Coat
- Light Housing : Fiber Reinforced Polymer
- Lens : Hard coated Polycarbonate
- IP Rating : IP67
- Includes : Mount, Six-FF.70, Hardware and Wiring Harness
